Marine LED Search Light

Marine LED Search Light

Marine automatic type search light is applied to far distance illumination and searching when in night navigation, especially for illumination of sea-route and two banks and surface search when across the complex water srea, such as narrow channel and the inland river way etc. It can also fit foe the projecting illumination in outdoor place such as ship, ock port, store place and stadium.

Product Feature:

1. It adopts 19pcs 10W high-power LED lamp

2. The service life of it is as long as 50,000 hours.

3. Low energy, environmental protectio, shock-proof, anti-corrosion, water-proof.

4. It is convenient to replace LED bulb and LED drive power supply

5. The shell can adjust the projection angle: pitching up 35 degrees, down 35 degrees, rote for 350 degrees horizontally by controller

Specification：

Type	Voltage	Power	Illuminant	Luminous flux	Protection class	Weight	Cable Outside Diamater
Automatic	DC110V	190W	LED	1200000	IP66	75kg	Φ9-Φ10
Manual	AC100V-240V					116kg	Φ12-Φ14

Marine Automatic Type LED Search Light	Sketch of Marine Automatic Type LED Search Light

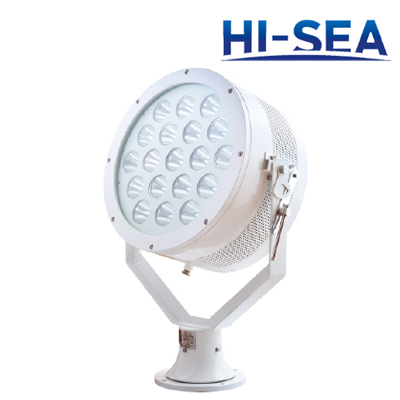

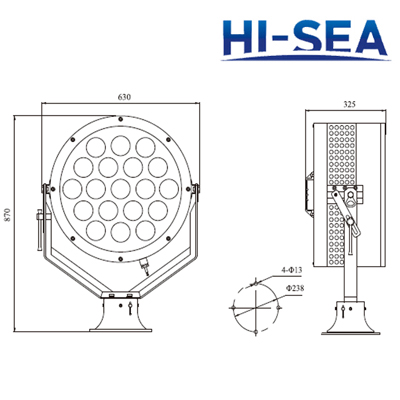

Marine Manual Type LED Search Light	Sketch of Marine Manual Type LED Search Light
