Marine Oblique Spot Light
[Search Related Products]
Marine Oblique Spot Light
Marine oblique spot lights including TG3, TG3-A, CTG3, CTG3-A, TG14 are the important marine lighting tools. The light body can rotate for 180 degrees horizontally and pitching 30 degrees. The lampshade is transparent safe toughened glass. It is equipped with focus nut under the light shell, which can be used to adjust the lighting focus.
Product Details:
1. Type: TG3, TG3-A, CTG3, CTG3-A, TG14
2. Voltage: DC110V/ AC220V
3. Rate of Power: 1000W
4. Light Source: Incandescent Focus Bulb
5. Lampholder: E40
6. Material: Steel
7. Protection Class: IP56
8. Cable outside diameter: ¦µ10-¦µ12
9. TG3, TG3-A, CTG3 and CTG3-A have lifter and controller.
Specification:
Type |
Voltage |
Power |
Lamp Holder |
Material |
Protection class |
Weight |
TG3 |
DC110V/AC220V |
1000W |
E40 |
Steel |
IP56 |
47.5kg |
TG4 |
DC110V/AC220V |
1000W |
E40 |
Steel |
IP56 |
82kg |
CTG3 |
DC110V/AC220V |
1000W |
E40 |
Steel |
IP56 |
47.5kg |
CTG4 |
DC110V/AC220V |
1000W |
E40 |
Steel |
IP56 |
82kg |
TG14 |
DC110V/AC220V |
1000W |
E40 |
Steel |
IP56 |
24.5kg |

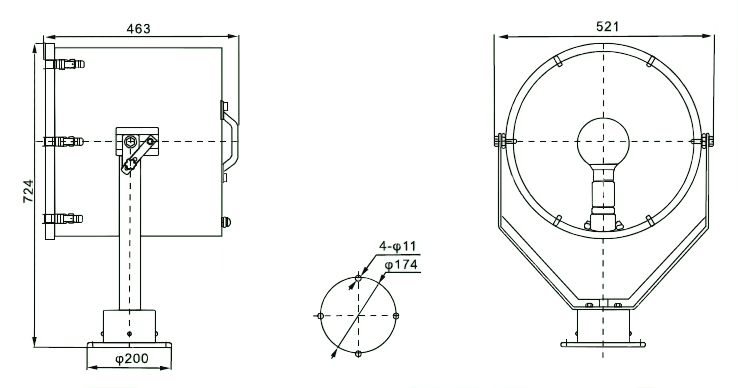

Sketch of Marine Oblique Spot Light TG14
Marine Oblique Spot Light TG3 |
Marine Oblique Spot Light CTG3 |
