Suez Canal Search Light
[Search Related Products]
Suez Canal Search Light
Suez Canal Search Light is applied to illimination of ship pass through the suez canal and the narrow sea-route when night navagation, can search and illuminate the obstacle on the surface.
Product Characteristic:
1. The lamp body adopts good quality aluminium alloy, the weight is light, good quality toughened glass lampshade.
2. Design with two bulbs structure, has rotary witch inside, can change between the bulbs under the electricity.
3.Two hemisphere reflector, can adjust the reflect effect between ¡À 5¡ã horizontally.
4. Equipped safe vent-valve under the lamp canister, can ensure the air pressure balace in and out the lamp canister.
5. The lamp can bend for ¡À 30¡ã, adjust ¡À 180¡ã horizontally.
6. Parallel light-beam, far illumination distance.
7. Conform to «GRADE ENTRY NORMS FOR STEEL SHIPS» and the request of «SUEZ CANAL NAVIGATION RULES».
Main technical parameter:
Product name |
Suez Canal Search Light |
Voltage |
220V/50HZ, 220V/60HZ |
Illuminant |
Tungsten halogen light |
Lamp holder |
GY16 |
Power |
2000W |
Luminous flux |
53000lm |
Irradiate distance |
¨R1800m |
Protection Class |
IP56 |
Cable outside diameter |
¦µ14~¦µ16 |
Weight |
29kg |

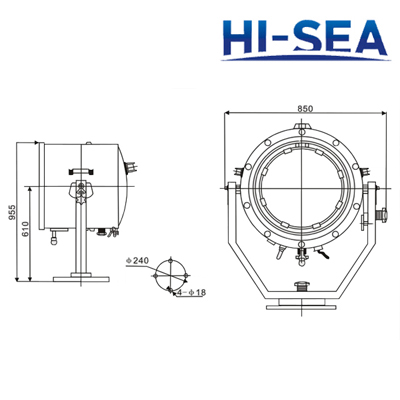

Sketch of Suez Canal Search Light TZ5
