Marine Tungsten Halogen Flood Light TG4
Marine tungsten halogen flood light is applied to projecting illumination in outdoor place such as ship, dock, port, storeplace and petroleum platform etc. It is made of high quality stainless steel , the lampshade is made of toughened glass, and high-purify aluminum reflector, which has good reflecting effects.
Product Details:
1. Type: TG4. TG5. TG6
2. Lampholder: E40
3. Material: Stainless Steel
4. Protection Class: IP67
5. Cable outside diameter: ¦µ12-¦µ14
6. Annex: Ballast box
Product Features:
1. Compact structure, beautiful appearance, good seal and anticorrosive performance
2. Adjusted upside 90 degrees, down 45 degrees.
3. Approved by CCS.
Specification £º
Type |
Voltage |
Power |
Luminous flux |
Illuminant |
Weight |
TG4 |
110V/60HZ |
500W |
8500 |
Tungsten halogen lamp |
6kg |
1000W |
22000 |
||||
TG5 |
220V/50HZ |
250W |
26000 |
High-pressure sodium lamp |
8kg |
400W |
47000 |
||||
TG6 |
220V/ 60HZ |
250W |
20500 |
Metal halide lamp |
|
400W |
36000 |

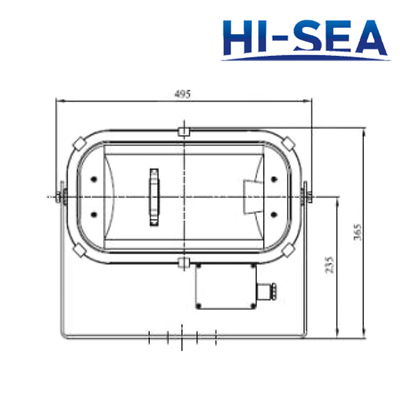

Sketch of marine tungsten halogen flood light TZ4
