Marine Steel Wire Reel Type A

Marine Steel Reel Wire Reel Type A

CB/T 3468-1992 marine steel wire reel is used to store steel wire for all ships. It is not suitable for towing or stranded cables.

This standard marine ship rope reel has four different types: type A, AW, B, C. Except type AW, all the other three types have crank handle. Please refer to the drawing and corresponding product parameters.

Features of CB/T 3468-1992 Type A

1. Applicable to Store Marine Steel Ropes;

2. Model Type: A13,A17,A21,A26,A32;

3. Applicable Steel Wire Max. Diameter: 13.0~32mm;

4. Max. Length of Steel Wire: 120mm, 190mm

5. Material: Steel;

6. Smooth and Clean Surface without Defects such as Burrs, Cracks, Sharp Corners etc.

7. Lubricated, Anti-corrosive Painting

8. Certificate: ABS, CCS, BV, DNV, NK etc.

9. Meet Customer¡¯s Special Requirements

We supply various marine equipment. If you¡¯re interested in our products, please feel free to contact. We¡¯ll give you a quick and satisfactory reply.

Marine Steel Wire Reel Type A

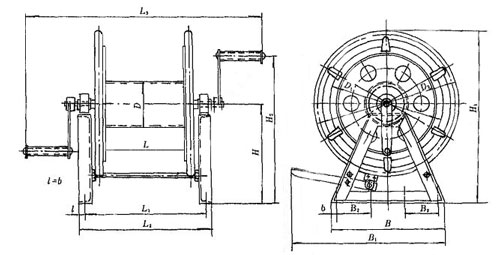

Drawing of Marine Steel Wire Reel Type A

Unit:mm

Model Type

Max. Diameter of Steel Wire

D

D1

D2

L

L1

L2

L3

B

B1

H

H1

H2

Foot Bolts

Weight(kg)

Thread Diameter

Quantity

B

b

A13

13.0

170

330

530

350

528

584

1161

560

420

685

670

M16

6

240

40

69

A17

17

230

470

670

450

628

684

1281

620

925

495

830

745

M16

8

180

40

86

A21

20.5

280

560

760

500

700

770

1340

650

945

535

915

875

M16

8

190

40

118

A26

26

340

660

860

550

750

820

1425

695

972

610

1040

950

M16

8

205

40

131

A32

32

425

800

1000

650

850

920

1510

740

1024

665

1165

1510

M16

8

220

40

172
