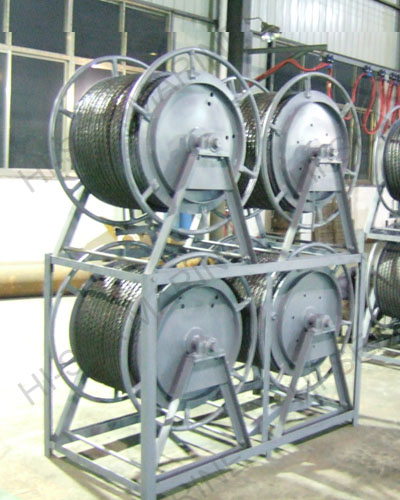

Mooring Steel Wire Reel CB T3468-92
[Search Related Products]
Mooring Steel Wire Reel CB/T 3468-92
CB/T 3468-1992 marine steel wire reel is used to store steel wire for all ships. It is not suitable for towing or stranded cables.
This standard marine ship rope reel has four different types: type A, AW, B, C. Except type AW, all the other three types have crank handle. Please refer to the drawing and corresponding product parameters.
Features of CB/T 3468-1992
1. Applicable to Store Marine Steel Ropes;
2. Four Type: Type A,AW,B,C;
3. Applicable Steel Wire Max. Diameter: 13.0~56mm;
4. Max. Length of Steel Wire:120mm~300mm;
5. Bolts Quantity: 6~14;
6. Material: Steel;
7. Smooth and Clean Surface without Defects such as Burrs, Cracks, Sharp Corners etc.
8. Lubricated, Anti-corrosive Painting
9. Certificate: ABS, CCS, BV, DNV, NK etc.
10. Meet Customer¡¯s Special Requirements
We supply various marine equipment. If you¡¯re interested in our products, please feel free to contact us. We¡¯ll give you a quick and satisfactory reply.
CB/T3468-1992 Marine Steel Wire Reel Type A
Unit:mm
|
Model Type |
Max. Diameter of Steel Wire |
D |
D1 |
D2 |
L |
L1 |
L2 |
L3 |
B |
B1 |
H |
H1 |
H2 |
Foot Bolts |
Weight(kg) |
|||
|
Thread Diameter |
Quantity |
B |
b |
|||||||||||||||
|
A13 |
13.0 |
170 |
330 |
530 |
350 |
528 |
584 |
1161 |
560 |
|
420 |
685 |
670 |
M16 |
6 |
240 |
10 |
69 |
|
A17 |
17 |
230 |
170 |
670 |
450 |
628 |
684 |
1281 |
620 |
925 |
495 |
830 |
745 |
M16 |
8 |
180 |
10 |
86 |
|
A21 |
20.5 |
280 |
560 |
760 |
500 |
700 |
770 |
1340 |
650 |
945 |
535 |
915 |
875 |
M16 |
8 |
190 |
40 |
118 |
|
A26 |
26 |
340 |
660 |
860 |
550 |
750 |
820 |
1425 |
695 |
972 |
610 |
1040 |
950 |
M16 |
8 |
205 |
40 |
131 |
|
A32 |
32 |
425 |
800 |
1000 |
650 |
850 |
920 |
1510 |
740 |
1024 |
665 |
1165 |
1510 |
M16 |
8 |
220 |
40 |
172 |
CB/T3468-1992 Marine Steel Wire Reel Type AW
Unit:mm
|
Model Type |
Max. Diameter of Steel Wire |
D |
D1 |
D2 |
L |
L1 |
L2 |
B |
B1 |
H |
H1 |
Foot Bolts |
Weight(kg) |
|||
|
Thread Diameter |
Quantity |
B |
b |
|||||||||||||
|
AW13 |
13 |
170 |
330 |
530 |
350 |
528 |
584 |
560 |
|
420 |
685 |
M16 |
6 |
240 |
40 |
58 |
|
AW17 |
17 |
230 |
470 |
670 |
450 |
628 |
684 |
620 |
925 |
495 |
830 |
M16 |
8 |
180 |
40 |
76 |
|
AW21 |
20.5 |
280 |
560 |
760 |
500 |
700 |
770 |
650 |
945 |
535 |
915 |
M16 |
8 |
190 |
40 |
113 |
|
AW26 |
26 |
340 |
660 |
860 |
550 |
750 |
820 |
695 |
972 |
610 |
1040 |
M16 |
8 |
205 |
40 |
122 |
|
AW32 |
32 |
425 |
800 |
1000 |
650 |
850 |
920 |
740 |
1024 |
665 |
1165 |
M16 |
8 |
220 |
40 |
162 |
CB/T3468-1992 Marine Steel Wire Reel Type B
Unit:mm
|
Model Type |
Max. Diameter of Steel Wire |
D |
D1 |
D2 |
L |
L1 |
L2 |
L3 |
B |
B1 |
H |
H1 |
H2 |
H3 |
Gear Modulus |
Large Gear Tooth Number |
Small Gear Tooth Number |
Foot Bolts |
Weight(kg) |
||
|
Thread Diameter |
Quantity |
B2 |
|||||||||||||||||||
|
B39 |
39.0 |
510 |
936 |
1008 |
750 |
972 |
1032 |
1656 |
910 |
1085 |
584 |
1148 |
1303 |
1488 |
6 |
166 |
22 |
M16 |
10 |
180 |
337 |
|
B48 |
47.5 |
620 |
1020 |
1032 |
1100 |
1326 |
1386 |
2010 |
1000 |
1220 |
584 |
1160 |
1315 |
1500 |
8 |
127 |
17 |
M16 |
12 |
200 |
394 |
CB/T3468-1992 Marine Steel Wire Reel Type C
|
Model Type |
Max. Diameter of Steel Wire |
Gear Modulus |
Large Gear Tooth Number |
Small Gear Tooth Number |
Foot Bolts |
Weight(kg) |
|
|
Thread Diameter |
Quantity |
||||||
|
C56 |
56 |
10 |
134 |
18 |
M24 |
14 |
643.75 |
