Motor Driven Mooring Steel Wire Reel CB 3048-83

Motor Driven Mooring Steel Wire Reel CB*3048-83

CB*3048-83 motor driven tightwire reel is suitable for all kinds of ships to store steel wire ropes. But it cannot be used for towing or stranded cable. This type mooring wire reel is controlled by a motor which uses operating handle to operate through the worm gear reducer.

This standard wire reel has three types: Type A,Type AS ,Type B. Type AS has double reel. Different type is suitable for different sizes of steel wire. Please refer to the basic parameters on the following data sheets.

Features of CB*3048-83 Motor Driven Steel Wire Reel

1. Model: A26,A32,AS 26, AS 32, B39,B48

2. Max. Diameter of Steel Wire: 26~48.5mm;

3. Steel Length: 210mm,220mm;

4. Material: Steel;

5. No Pit, Burr, Crack or Any Other Defects;

6. Lubricated, Polished;

7. Certificate: ABS, CCS, BV, DNV, NK etc.

8. Can Meet Customer¡¯s Special Requirements;

We supply various marine equipment. If you¡¯re interested in our products, please feel free to contact us.

Basic Parameters:

Type

Model

Max. Diameter of Steel Wire

Length of Steel Wire (m)

Motor

Speed

Rope Reeling Speed m/min

-1


Max. External Size(mm)

Weight(kg)

Model

Power(kw)

Rate of Revolution (min

-1)


1350min

-1


410min

-1


A

A26

26

220

JZ2-H-23-4/12

4.3/1/7

1350/410

44

56

17

1330¡Á1360¡Á1175

545

A32

32

210

60

18

1430¡Á1450¡Á1330

575

AS 26

26

220

56

17

2345¡Á1360¡Á1175

773

AS 32

32

210

60

18

2525¡Á1450¡Á1330

820

B

B39

39

210

64

19

1800¡Á1360¡Á1075

700

B48

48.5

210

73

22

2060¡Á1410¡Á1270

824

Motor Driven Mooring Steel Wire Reel CB 3048-83

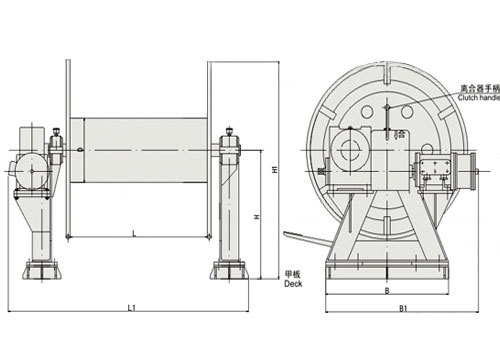

Motor Driven Steel Wire Reel CB*3048-83 Type A

Model

Max. Diameter of Steel Wire(mm)

D

D1

B

B1

L

L1

H

H1

Weight(kg)

A26

26

300

870

1120

1360

550

1330

730

1175

545

A32

32

360

1050

1120

1450

650

1430

800

1330

575

Motor Driven Mooring Steel Wire Reel CB 3048-83

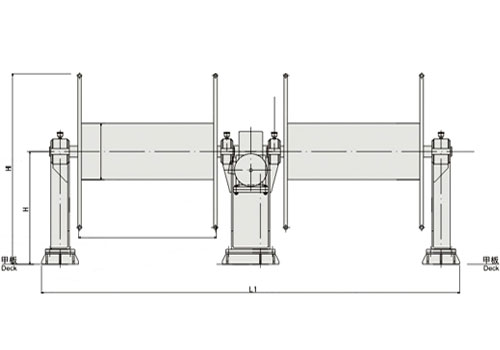

Motor Driven Steel Wire Reel CB*3048-83 Type As

Model

Max. Diameter of Steel Wire(mm)

D

D1

B

B1

L

L1

H

H1

Weight(kg)

AS26

26

300

870

1120

1360

550

2340

740

1175

773

AS32

32

360

1050

1120

1450

650

2525

800

1330

820

Motor Driven Mooring Steel Wire Reel CB 3048-83

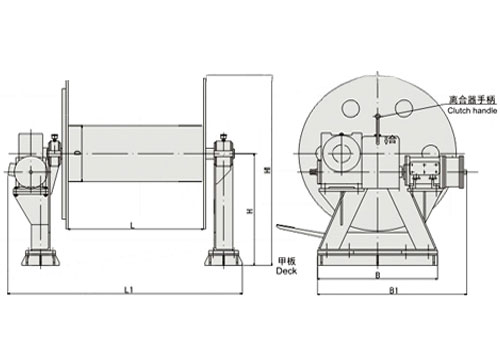

Motor Driven Steel Wire Reel CB*3048-83 Type B

Model

Max. Diameter of Steel Wire (mm)

D

D1

B

B1

L

L1

H

H1

Weight(kg)

B30

39

450

870

1120

1360

994

1800

750

1075

700

B48

48.5

550

970

1120

1410

1250

2060

800

1270

824
