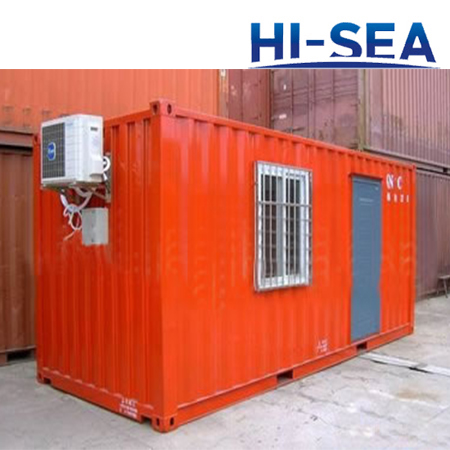

Modified Shipping Container House

Technical Parameters

Dimensions and weight

Inner length:5.71m;external length:6.06m

Inner width:2.188m;external width:2.438m

Inner height:2.33m ;external height:2.591m

Weight:4400kg per unit

Steel framework

Basic material:Used or new shipping container

Surface treatment:Sand blasted,base coat 55µm thick epoxy paint,surface coat 55µm thick epoxy painting

Floor

Floor:1.5mm thick PVC floor leather for living room floors and 2.5mm thick anti-slip PVC floor board

Permitted loading:8.0KN/㎡

Coefficient of thermal conductivity:k=1.1W/㎡k

Ceiling and wall

Roof exterior:Container roof

Insulation:50mm rockwool between wooden purlins

Inner wainscot:9mm MDF decorative panel covered with wallpaper or PVC

Coefficient of thermal conductivity:k=0.55W/㎡k

Wall

External and wainscot:Container wall

Insulation:75mm rockwool between wooden purlins

Inner wainscot:9mm MDF decorative panel covered with wallpaper or PVC

Permitted loading:1.0kN/㎡

Coefficient of the thermal conductivity:k=0.442W/㎡k

Door

External door:Steel security door with 850*2100mm opening,with lock and keys

Or other style of door as confirmed with the client.

Window

Window material:White PVC,dimensions:1200*1000mm

Glass thickness:3mm,sliding window with fly screen and grill guard

Also available as PVC windows with rolling shutter or other style of window as confirmed with the client
