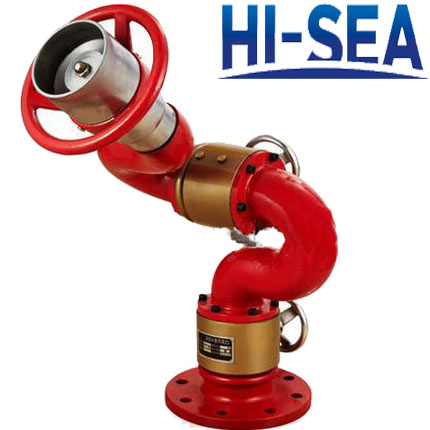

Adjustable Fire Monitor
Adjustable water fire monitor is efficient fire extinguishing equipment which is used to extinguish the long distance fire caused by solid substances. Its flow rate, jetting distance and discharging status are all adjustable. Fire monitor has the characteristics of lightweight, small size, multi-functions and excellent effect. It widely applies to the petrochemical industries, warehouses, ports, marine ships etc.
Product Detail:
Model Name: PS20-PS80
Jetting Range:48-80M
Flow Rate:20-80L/min
Working Pressure: 0.8-1.2MPa
Flange Connection: DN80 DN100
Certificate:CCS,EC etc.
Technical Parameters:
Model |
Flow Rate(L/S) |
Jetting Range(m) |
Working Pressure(MPa) |
Weight(kg) |
Flange Connection |
PS20 |
20 |
¡Ý48 |
0.8-1.0 |
¡Ü35 |
DN80 |
PS25 |
25 |
¡Ý50 |
|
|
|
PS30 |
30 |
¡Ý55 |
|
|
|
PS40 |
40 |
¡Ý60 |
|
|
|
PS50 |
50 |
¡Ý65 |
|
|
|
PS60 |
60 |
¡Ý70 |
0.9-1.2 |
¡Ü45 |
DN100 |
PS70 |
70 |
¡Ý75 |
|
|
|
PS80 |
80 |
¡Ý80 |
|
|
|
Adjustable Fire Monitor:
