Fire Fighting Monitor
Fire monitor is mainly divided into fire water monitor and fire foam monitor. It is used as fire extinguisher to put out the long distance fires caused by solid substances or liquids. Fire monitor is full-featured and has excellent extinguishing effect. It has large pressure range and long jetting distance. It supports spraying DC, 90¡ãflowering and mist jetting. Fire monitors with its light weight, small size,multi-functions are the best choice of firefighters,marine ships, petrochemical industries, storage tank areas, hangars, warehouses, ports and other places. If you¡¯re interested in our fire monitors, please feel free to contact us.
Product Specification:
Model Type: PS series & PP series
Flow Rate: 20~100L/S
Working Pressure: 0.8~1.2MPa
Horizontal Rotation Angle: 0~360¡ã
Pitch Rotation Angle: -70¡ã~+90¡ã
Certificate: CCS,EC etc.
Technical Parameters of Water Monitors:
Model |
PS20-50 |
PS60-100 |
||||||
Working Pressure (MPa) |
0.8-1.0 |
0.9-1.2 |
||||||
Flow Rate(L/S) |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
Jetting Range(m) |
¡Ý48 |
¡Ý55 |
¡Ý60 |
¡Ý65 |
¡Ý70 |
¡Ý75 |
¡Ý80 |
¡Ý85 |
Rotation Angle |
360¡ã |
360¡ã |
||||||
Elevation Angle |
-70¡ã~ +90¡ã |
-70¡ã~ +90¡ã |
||||||
Inlet Flange |
80 |
100 |
Technical Parameters of Foam Monitors:
Model |
Flow Rate(L/s) |
Expansion Ratio |
25% Suction Time(min) |
Working Pressure(MPa) |
Weight(kg) |
Inlet Flange |
Jetting Range(m) |
PP24 |
24 |
¡Ý6 |
¡Ý2.5 |
0.8-1.0 |
¡Ü35 |
DN80 |
¡Ý40 |
PP32 |
32 |
¡Ý6 |
¡Ý2.5 |
0.8-1.0 |
¡Ü35 |
DN80 |
¡Ý45 |
PP40 |
40 |
¡Ý6 |
¡Ý2.5 |
0.8-1.0 |
¡Ü35 |
DN80 |
¡Ý50 |
PP48 |
48 |
¡Ý6 |
¡Ý2.5 |
0.8-1.0 |
¡Ü35 |
DN80 |
¡Ý55 |
PP64 |
64 |
¡Ý6 |
¡Ý2.5 |
0.8-1.0 |
¡Ü35 |
DN80 |
¡Ý60 |
PP80 |
80 |
¡Ý6 |
¡Ý2.5 |
1.0-1.2 |
¡Ü45 |
DN100 |
¡Ý65 |
PP100 |
100 |
¡Ý6 |
¡Ý2.5 |
1.0-1.2 |
¡Ü60 |
DN100 |
¡Ý75 |

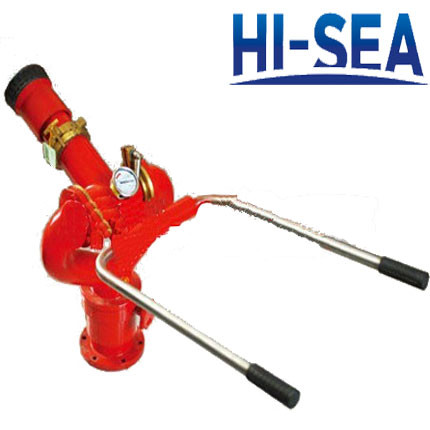

Fire Figting Monitor:
