Automatic Fire Fighting Monitor

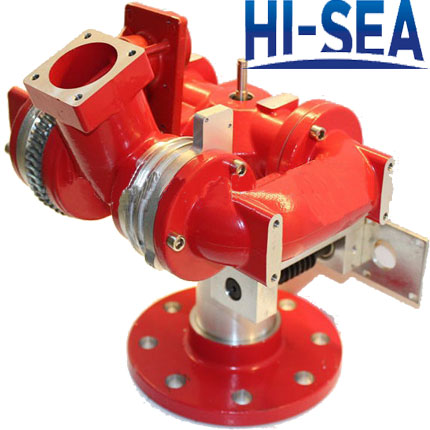

Automatic fire fighting monitor is small size,light compact and easy to turn. It connects with the infrared detection control system and put out the fire automatically. Its automatic function makes it put out the fire at the initial stage and save people¡¯s life and property to the maximum. Automatic fire fighting monitor also can be fixed and manually controlled. It has high stable performance. If you¡¯re interested in our fire monitors, please do not hesitate to contact us.
Product Specification:
Model Type: Automatic fire fighting monitor
Flow Rate: 5-20L/S
Working Pressure: ¡Ü0.8MPa
Horizontal Rotation: 0-360¡ã
Vertical Rotation:-90~+90¡ã
Material: Aluminum alloy
Weight: ¡Ü15kg
Certificate: EC etc.
Technical Parameters:
Model |
HS-20 |
HS-30 |
HS-50 |
Protection Radius |
25m |
30m |
50m |
Shoot Water Flow |
5L/S |
5L/S |
20L/S |
Dimensions(L*W*H) |
250*250*350mm |
400*380*540mm |
582*320*310mm |
Weight(kg) |
6.2 |
8 |
15 |
Interface Diameter |
DN25 |
DN50 |
DN50 |
Mounting Height |
6-22m |
4-30m |
6-30m |
Rated Working Pressure |
0.6MPa |
0.6MPa |
0.8MPa |
Maximum Working Pressure |
1.0MPa |
1.0MPa |
1.6MPa |
Fire Positioning Time |
¡Ü30s |
¡Ü30s |
¡Ü30s |
Operation Ambient Temperature |
4-55¡æ |
4-55¡æ |
4-55¡æ |
Horizontal Rotation Range |
0-360¡ã |
0-360¡ã |
0-360¡ã |
Vertical Swivel Range |
0~90¡ã |
-10~90¡ã |
-90¡ã~+90¡ã |
Automatic Fire Fighting Monitor:
