Fire Monitor

Fire Monitor:

Fire monitor is important fire fighting equipment which used to put out the long distant fire. It is divided into two categories: water fire monitor (PS), foam fire monitor (PP). Water fire monitor sprays water to put out the distant fire caused by solid substance. Foam monitor sprays air foam to put out the fire caused by specific liquid. Fire monitors is full-featured and has excellent effect of extinguishing. It is the best fire fighting equipment for petrochemical industries, storage tank areas,hangars, warehouses, ports etc. It is also the best choice for marine ships, fixed offshore platforms, fire trucks and other places.

Features of Water Monitor:

1. Support positioning;

2. Wide pressure range;

3. Long jetting distance;

4. Lightweight, small size;

5. Support both horizontal and pitch rotation;

6. Adjustable flow rate and wide discharging range;

7. Full-featured and excellent extinguishing effect

Technical Parameters:

Model

PS20-50

PS60-100

Working Pressure (MPa)

0.8-1.0

0.9-1.2

Flow Rate(L/S)

20

30

40

50

60

70

80

100

Jetting Range(m)

¡Ý48

¡Ý55

¡Ý60

¡Ý65

¡Ý70

¡Ý75

¡Ý80

¡Ý85

Rotation Angle

360¡ã

360¡ã

Elevation Angle

-70¡ã~ +90¡ã

-70¡ã~ +90¡ã

Inlet Flange

80

100

Features of Foam Monitor:

1. Can spray both foam and water;

2. Long jetting distance;

3. Wide discharging range;

4. Adjustable flow rate;

5. Be installed fixedly, controlled manually;

6. Full-featured and excellent extinguishing effect

7. Excellent performance under working pressure 8-10MPa;

Technical Parameters:

Model

Flow Rate(L/s)

Expansion Ratio

25% Suction Time(min)

Working Pressure(MPa)

Weight(kg)

Inlet Flange

Jetting Range(m)

PP24

24

¡Ý6

¡Ý2.5

0.8-1.0

¡Ü35

DN80

¡Ý40

PP32

32

¡Ý6

¡Ý2.5

0.8-1.0

¡Ü35

DN80

¡Ý45

PP40

40

¡Ý6

¡Ý2.5

0.8-1.0

¡Ü35

DN80

¡Ý50

PP48

48

¡Ý6

¡Ý2.5

0.8-1.0

¡Ü35

DN80

¡Ý55

PP64

64

¡Ý6

¡Ý2.5

0.8-1.0

¡Ü35

DN80

¡Ý60

PP80

80

¡Ý6

¡Ý2.5

1.0-1.2

¡Ü45

DN100

¡Ý65

PP100

100

¡Ý6

¡Ý2.5

1.0-1.2

¡Ü60

DN100

¡Ý75

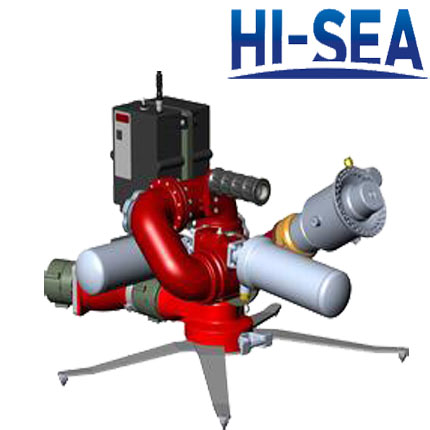

Automatic Fire Monitor:

Fire Monitor

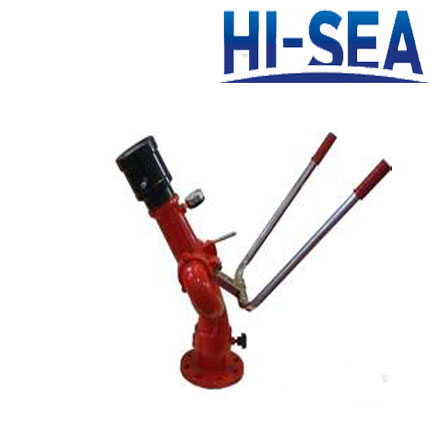

Hand Stick Fire Monitor:

Fire Monitor

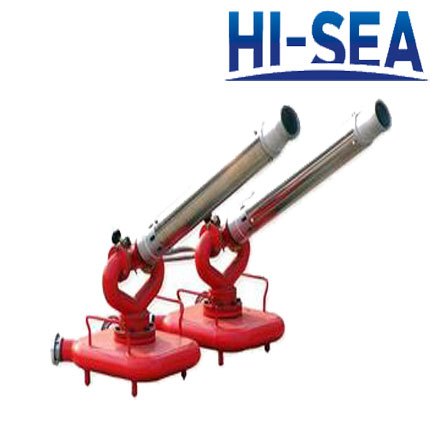

Movable Fire Monitor:

Fire Monitor

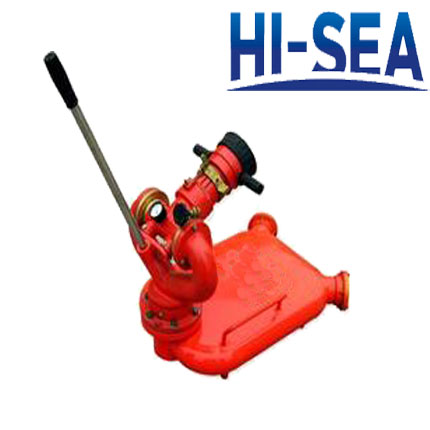

Trolley-type Fire Monitor:

Fire Monitor
