Alloy Steel Elliptical Head:

Other names for elliptical head: elliptical end, elliptical cap, dished elliptical head, ellipsoidal head, ellipsoidal end, ellipsoidal cap, dished ellipsoidal head, etc.;

Feature: applicable to high temperature, low temperature, high corrosiveness or other special service conditions;

Application: pressure vessels, storage tanks, boilers, pipes, heat exchangers, condensers, absorbers, etc.;

Surface treatment: sand/shot blasting, pickling, passivation, polishing, coating, painting, galvanizing, lining, oiling, etc.;

ASME stamp available if required;

Specifications:

Item	Descriptions
DN	100mm-6000mm (customized size available)
Wall Thickness	3mm-150mm (customized thickness available)
Standard/Norm	ASME/ANSI, DIN, GB, EN, BS, JIS, GOST, etc.
Material	A529, A572, A633, A588, A663,A808, A656, A678, A29, A304, E295, S275JR, E335, S335JR, S355JO, S355J2G3, S355J2G4, S355K2G3, S355K2G4, S355NL. S355ML, S420NL, S420ML, S460NL, S460ML, P355GH, 28Mn6, 39MnCrB6-2, 17Cr3, 20Cr4, 34Cr4, 41Cr4, 25CrMo4, 34CrMo4, 42CrMo4, 41CrALMo7, 51CrV4, 20MnCr5, 41Cr4, 40CrMo4, 21NiCrMo2, Q295A, Q295B, Q345A, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C, Q390D, Q390E, Q420A, Q420B. Q420C, Q420D, Q420E, Q460C, Q460D, Q460E, 20Mn2, 30Mn2, 35Mn2, 40Mn2, 45Mn2, 50Mn2, 20MnV, 30Mn2MoW, 20Mn2MoW, 25Mn2MoW, 37Mn2MoW, 27SiMn, 35SiMn, 42SiMn, 40B, 45B, 50B, 40MnB, 15MnVB, 15Cr, 20Cr, 25Cr2Ni4WA, etc.
Connection Type	Butt-welded or threaded
Construction Type	Seamless or welded
Edge Type	Bevel, plain or as required

Pictures:

Alloy Steel Elliptical Head

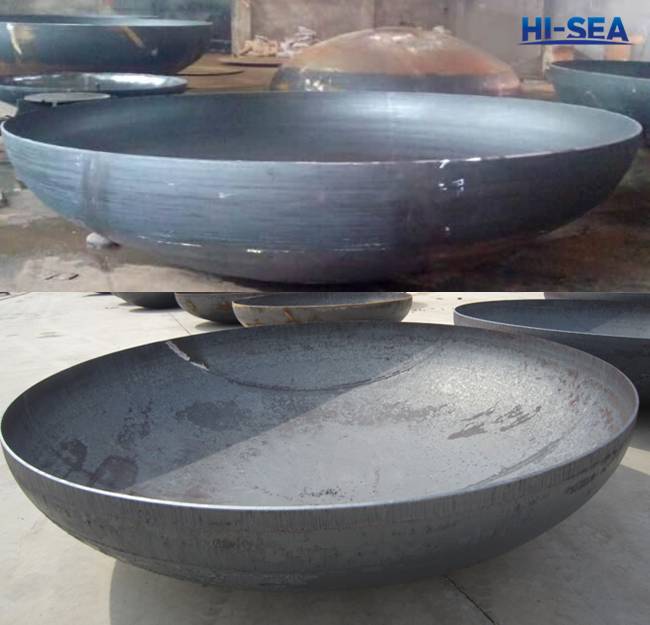

Alloy Steel Elliptical Head in Mill

Alloy Steel Elliptical Head

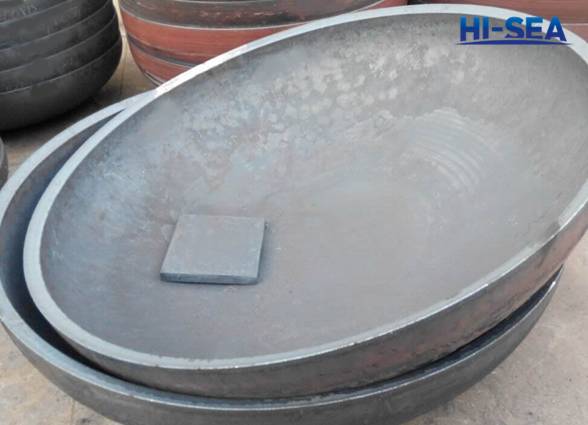

Alloy Steel Elliptical Head with Plate Sample

(For more detailed specifications or requirements, please contact oildept@hiseamarine.com or Aiphen on Skype.)
