SS 316 Elliptical Head

SS 316 Elliptical Head

SS 316 Elliptical Head:

Other names for elliptical head: elliptical end, elliptical cap, dished elliptical head, ellipsoidal head, ellipsoidal end, ellipsoidal cap, dished ellipsoidal head, etc.;

The heads are made from the stainless steel 316, which is used widely in various types of vessels or tanks requiring good performance in anti-corrosion;

Surface treatment: sand blasting, pickling, passivation, polishing, coating, lining, oiling, etc.;

ASME stamp available if required;

Specifications:

Item	Descriptions
DN	100mm-6000mm (customized size available)
Wall Thickness	3mm-150mm (customized thickness available)
Standard/Norm	ASME/ANSI, DIN, GB, EN, JIS, GOST, etc.
Material	Stainless steel ASTM 316 / 1.4401 / 0Cr17Ni12Mo2 / SUS316
Structure	Seamless or welded
Process Type	Hot pressing, cold pressing, cold spinning
Connection Type	Butt-welded
Edge Type	Bevel, plain or as required

Pictures:

SS 316 Elliptical Head

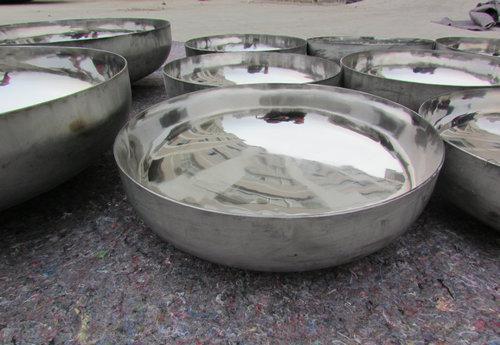

SS 316 Elliptical Head Finished

(For more detailed specifications or requirements, please contact oildept@hiseamarine.com or Aiphen on Skype.)
