Carbon Steel Elliptical Head

Carbon Steel Elliptical Head

Carbon Steel Elliptical Head:

Other names of elliptical head: elliptical end, elliptical cap, dished elliptical head, ellipsoidal head, ellipsoidal end, ellipsoidal cap, dished ellipsoidal head, etc.;

Application: pressure vessels, storage tanks, boilers, pipes, heat exchangers, condensers, absorbers, etc.;

Surface treatment: sand/shot blasting, pickling, passivation, polishing, coating, painting, galvanizing, lining, oiling, etc.;

ASME stamp available;

Specifications:

Item	Descriptions
DN	100mm-6000mm (customized size available)
Wall Thickness	3mm-150mm (customized thickness available)
Standard/Norm	ASME/ANSI, DIN, GB, EN, BS, JIS, GOST, etc.
Material	Carbon steel grade such as SA516 GR60/65/70, SA387 GR11 CL2, SA387 GR12, SA387 GR22 CL2, SA234 GR WPB/WPC, SA537 CL1/CL2, SA105, Q235, Q245R, Q345R, Q370R, 16MnDR, 15MnVR, 19Mn6, HI. HII, P235, PH235, P355, PH355, P235GH, P245GH, P265GH, P295GH, SB410, SB450, SPV355, SEV245, etc.;
Processing Type	Hot pressing, cold pressing, cold spinning
Construction Type	Seamless or welded
Connection Type	Butt-welded or threaded
Edge Type	Bevel, plain or as required

Pictures:

Carbon Steel Elliptical Head

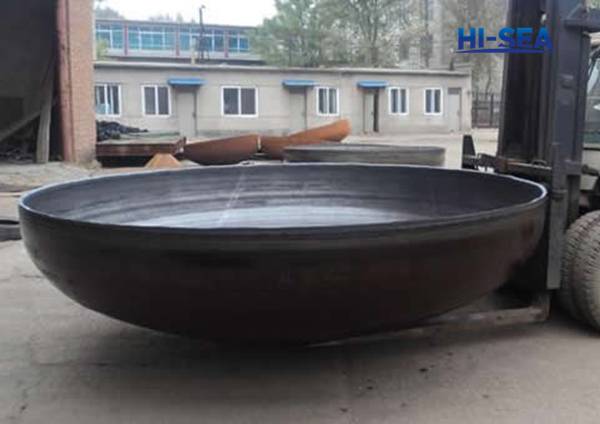

Carbon Steel Elliptical Head Finished in Mill

Carbon Steel Elliptical Head

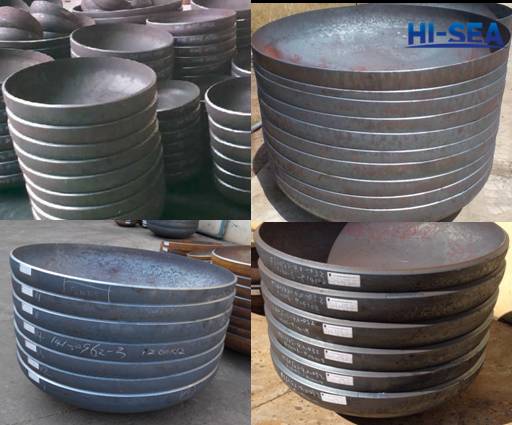

Carbon Steel Elliptical Head in Stock

Carbon Steel Elliptical Head

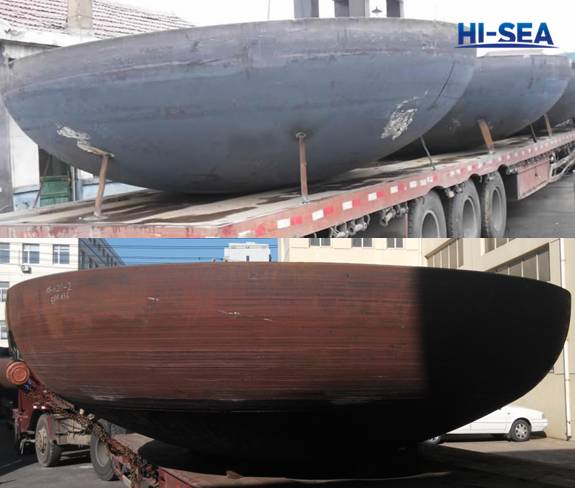

Carbon Steel Elliptical Head Delivered

(For more detailed specifications or requirements, please contact oildept@hiseamarine.com or Aiphen on Skype.)
