DIN 28013 Elliptical Head

DIN 28013 Elliptical Head

DIN 28013 Elliptical Head:

Other names of elliptical head: elliptical end, elliptical cap, dished elliptical head, ellipsoidal head, ellipsoidal end, ellipsoidal cap, dished ellipsoidal head, etc.;

Manufactured as per German standard DIN 28013 (ˇ°Gewolbte Boden-Korbbogenformˇ±);

Applicable to vessels, boilers, reactors, condensers, absorbers, etc.;

Surface treatment: sand/shot blasting, pickling, passivation, polishing, coating, painting, lining, oiling, etc.;

Specifications:

Item

Descriptions

Model Code

EH

DN

30mm-6000mm

Wall Thickness

3mm-50mm

Material

Carbon steel, stainless steel, alloy steel, nickel alloy, titanium alloy, copper alloy, aluminum alloy, etc.

Process Type

Cold pressing, hot pressing, cold spinning, segment, etc.

Construction Type

Seamless or welded

Connection Type

Butt-welding

Edge Type

As per the standard/norm or required

Pictures:

DIN 28013 Elliptical Head

DIN 28013 Elliptical Head Drawing

DIN 28013 Elliptical Head

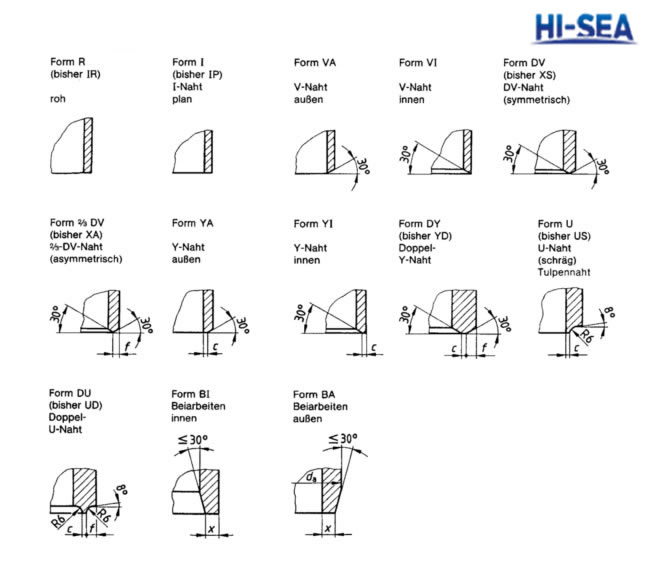

DIN 28013 Elliptical Head Edge TYpe

DIN 28013 Elliptical Head

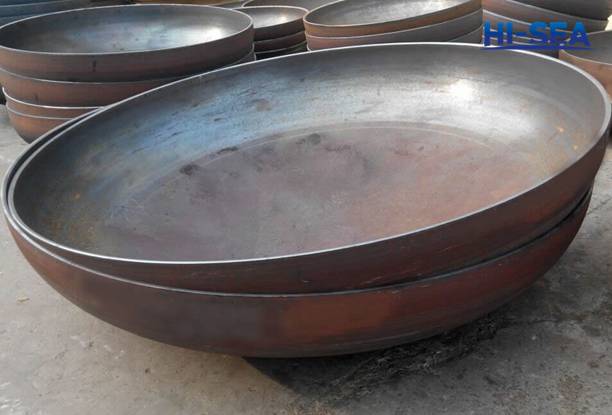

DIN 28013 Elliptical Head to Be Delivered

(For more detailed specifications or requirements, please contact oildept@hiseamarine.com or Aiphen on Skype.)
