GB/T 25198-2010 Elliptical Head:

Other names of elliptical head: elliptical end, elliptical cap, dished elliptical head, ellipsoidal head, ellipsoidal end, ellipsoidal cap, dished ellipsoidal head, etc.;

Manufactured as per Chinastandard GB/T 25198-2010 (“Heads for Pressure Vessels”);

Applicable to vessels, boilers, reactors, condensers, absorbers, etc.;

Surface treatment: sand/shot blasting, pickling, passivation, polishing, coating, painting, lining, oiling, etc.;

Specifications:

Item	Descriptions
Model Code	EHA / EHB
Dia.	300mm-6000mm (customized size available)
Wall Thickness	3mm-100mm (customized thickness available)
Material	Carbon steel, stainless steel, alloy steel, nickel alloy, titanium alloy, copper alloy, aluminum alloy, etc.
Process Type	Cold pressing, hot pressing, cold spinning, segment, etc.
Construction Type	Seamless or welded
Connection Type	Butt-welding

Pictures:

GB-T 25198-2010 Elliptical Head

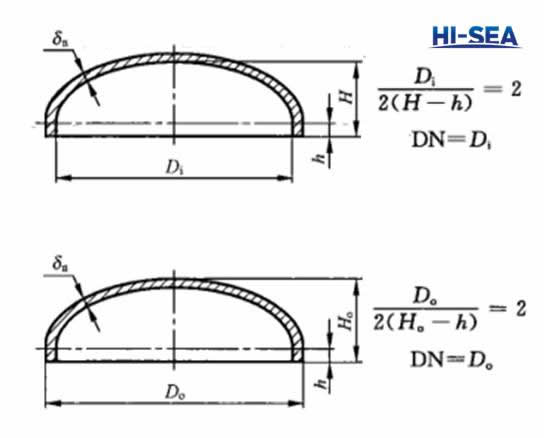

GB-T 25198-2010 Elliptical Head Drawing

GB-T 25198-2010 Elliptical Head

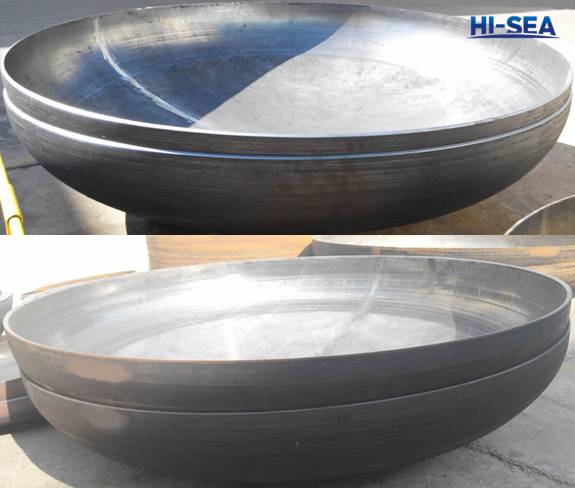

GB-T 25198-2010 Elliptical Head in Workshop
