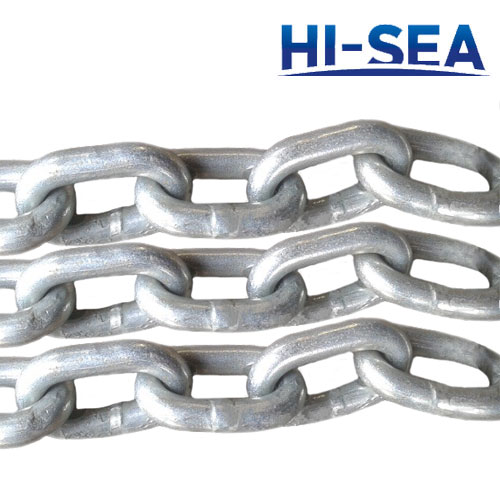

Alloy Steel Round Link Fishing Chain

Alloy Steel Round Link Fishing Chain

Our company supplies round link fishing chains of standard and customized specifications that are made of high quality alloy steel. If you¡¯re interested in our products, please feel free to contact us.

Short Link Fishing Chain

Short link fishing chain has a good yield performance that can meet a variety of applications. The short link chains are the heaviest among the fishing chain series. Its chain diameters range from 7mm, 10mm, 13mm, 16mm, 19mm to 20mm.

Alloy Steel Round Link Fishing Chain

Drawing of Short Link Chain

Specifications of Short Link Chains

Chain Type

Size(mm)

Chain Diameter(mm)

Width(mm)

Weight(kg/m)

Breaking Load min (KN)

Inside min.

Outside max.

Short Link Chain

7*21

7.00

10

25.5

1.09

53

10*30

10.00

14

36

2.2

109

13*39

13.00

18.1

47.1

3.8

172

16*48

16.00

22.4

57.4

5.63

281

19*57

19.00

27.8

68.8

7.99

397

20*60

20.00

29

72

8.85

440

Mid Link Fishing Chain

The strength of mid link chain is the same as short link chain, but due to its smaller number of links per meter, the wear of inner link is less. The mid link chains is lighter than short link chains and also cheaper. Mid link fishing chain diameter ranges from 10mm, 13mm, 14mm, 16mm, 19mm, 22mm to 26mm.

Alloy Steel Round Link Fishing Chain

Drawing of Mid Link Chain

Specifications of Mid Link Chains

Chain Type

Size(mm)

Chain Diameter(mm)

Width(mm)

Weight(kg/m)

Breaking Load min (KN)

Inside min.

Outside max.

Mid Link Chain

10*40

10.00

15

37

1.97

109

13*52

13.00

19.5

48.5

3.36

172

14*50

14.00

18.5

49.5

4.00

215

16*64

16.00

24

59

5.06

281

19*76

19.00

28.5

69.5

7.15

397

22*86

22.00

27

74

9.45

532

26*92

26.00

31

86

13.63

743

Long Link Fishing Chain

Long link chains are much lighter than short link and mid link chains. The rotation space of its inner links is larger and convenient for the installation of accessories. Long link chain diameter ranges from 7mm, 9mm, 11mm, 13mm, 16mm, 19mm, 22mm to 28mm.

Alloy Steel Round Link Fishing Chain

Drawing of Long Link Chain

Specifications of Long Link Fishing Chain

Chain Type

Size(mm)

Chain Diameter(mm)

Width(mm)

Weight(kg/m)

Breaking Load min (KN)

Inside min.

Outside max.

Long Link Chain

7*45

7.00

10

25.5

0.83

53

9*53

9.00

15

35

1.45

89

11*63

11.00

18

43

2.16

132

13*80

13.00

22

51

2.93

172

16*100

16.00

26

61

4.42

281

19*100

19.00

27

68

6.45

397

22*120

22.00

37

84

8.74

532

28*150

28.00

44

103

14.3

860
