Marine Trawl Chain
Our company supplies both standard and customized marine trawl chains to meet our customer¡¯s different needs. They are welded transmission chains that aremade of high quality alloy steel. Our chains have high tensile strength and smooth surface. For more details, please feel free to contact us.
Features of Tuna Chain
1. Type: Tuna Chain/Fishing Chain
2. Function: Transmission Chain
3. Structure: Welded Chain
4. Material: Alloy Steel
5. Quality Grade: G80
6. Safety Factor: min 4
7. Color: self color or as requested
8. Standard and customized chains are available
Standard Parameters of Round Link Fishing Chains
|
Chain Type |
Size(mm) |
Chain Diameter(mm) |
Width(mm) |
Weight(kg/m) |
Breaking Load min (KN) |
|
|
Inside min. |
Outside max. |
|||||
|
Short Link Chain |
7*21 |
7.00 |
10 |
25.5 |
1.09 |
53 |
|
10*30 |
10.00 |
14 |
36 |
2.2 |
109 |
|
|
13*39 |
13.00 |
18.1 |
47.1 |
3.8 |
172 |
|
|
16*48 |
16.00 |
22.4 |
57.4 |
5.63 |
281 |
|
|
19*57 |
19.00 |
27.8 |
68.8 |
7.99 |
397 |
|
|
20*60 |
20.00 |
29 |
72 |
8.85 |
440 |
|
|
Mid Link Chain |
10*40 |
10.00 |
15 |
37 |
1.97 |
109 |
|
13*52 |
13.00 |
19.5 |
48.5 |
3.36 |
172 |
|
|
14*50 |
14.00 |
18.5 |
49.5 |
4.00 |
215 |
|
|
16*64 |
16.00 |
24 |
59 |
5.06 |
281 |
|
|
19*76 |
19.00 |
28.5 |
69.5 |
7.15 |
397 |
|
|
22*86 |
22.00 |
27 |
74 |
9.45 |
532 |
|
|
26*92 |
26.00 |
31 |
86 |
13.63 |
743 |
|
|
Long Link Chain |
7*45 |
7.00 |
10 |
25.5 |
0.83 |
53 |
|
9*53 |
9.00 |
15 |
35 |
1.45 |
89 |
|
|
11*63 |
11.00 |
18 |
43 |
2.16 |
132 |
|
|
13*80 |
13.00 |
22 |
51 |
2.93 |
172 |
|
|
16*100 |
16.00 |
26 |
61 |
4.42 |
281 |
|
|
19*100 |
19.00 |
27 |
68 |
6.45 |
397 |
|
|
22*120 |
22.00 |
37 |
84 |
8.74 |
532 |
|
|
28*150 |
28.00 |
44 |
103 |
14.3 |
860 |
|

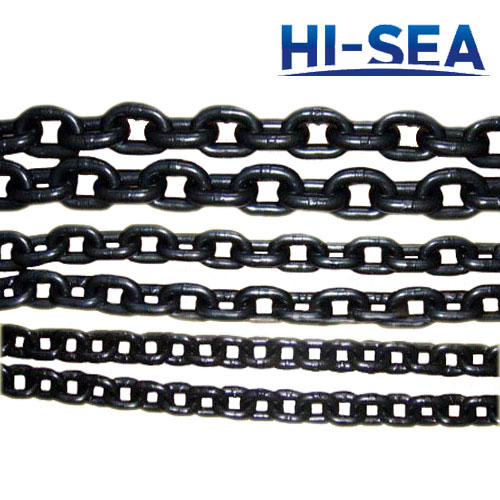

Fishing Net Chains
