Grade 80 Long Link Fishing Chain
We supply three specifications of fishing chains: short link chains, mid link chains, long link chains. Each specification has its special features. We can provide both standard and customized fishing chains to meet our customer¡¯s different needs.
Long link chains are much lighter than short link and mid link chains. The rotation space of its inner links is larger and convenient for the installation of accessories. Long link chain diameter ranges from 7mm, 9mm, 11mm, 13mm, 16mm, 19mm, 22mm to 28mm.
Specifications of Long Link Chains
1. Type: long link fishing chains
2. Material: alloy steel
3. Grade: 80
4. Safety Factor: Minimum 4
5. Surface Treatment: bare, polished, blackened, painted, sprayed, hot dip galvanized, electronic galvanized etc.
6. Package: as required
Drawing of Long Link Fishing Chain
Parameters of Long Link Fishing Chain
|
Chain Type |
Size(mm) |
Chain Diameter(mm) |
Width(mm) |
Weight(kg/m) |
Breaking Load min (KN) |
|
|
Inside min. |
Outside max. |
|||||
|
Long Link Chain |
7*45 |
7.00 |
10 |
25.5 |
0.83 |
53 |
|
9*53 |
9.00 |
15 |
35 |
1.45 |
89 |
|
|
11*63 |
11.00 |
18 |
43 |
2.16 |
132 |
|
|
13*80 |
13.00 |
22 |
51 |
2.93 |
172 |
|
|
16*100 |
16.00 |
26 |
61 |
4.42 |
281 |
|
|
19*100 |
19.00 |
27 |
68 |
6.45 |
397 |
|
|
22*120 |
22.00 |
37 |
84 |
8.74 |
532 |
|
|
28*150 |
28.00 |
44 |
103 |
14.3 |
860 |
|

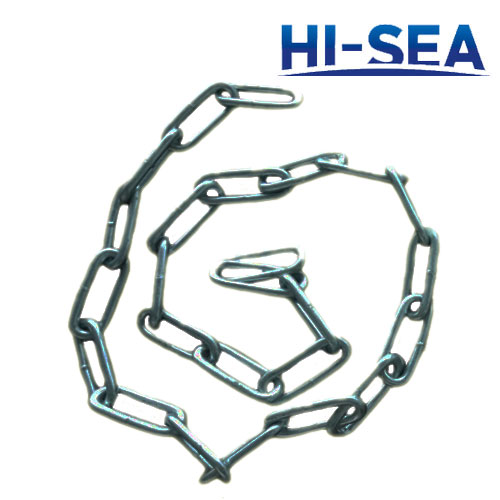

Electro Galvanized Long Link Fishing Chain
