Grade 80 Short Link Fishing Chain
Fishing chains have three specifications: short link fishing chains, mid link fishing chains, long link fishing chains.
Short link fishing chain has good yield property that can be used for various applications. Among the three types of fishing chains, the short link chains are the heaviest. Its chain diameter ranges from 7mm, 10mm, 13mm, 16mm, 19mm to 20mm.
Specifications of Short Link Chains
1. Type: short link fishing chains
2. Material: alloy steel
3. Grade: 80
4. Safety Factor: Minimum 4
5. Surface Treatment: bare, polished, blackened, painted, sprayed, hot dip galvanized, electronic galvanized etc.
6. Package: as required
Drawing of Short Link Chains
Parameters of Short Link Fishing Chain
|
Chain Type |
Size(mm) |
Chain Diameter(mm) |
Width(mm) |
Weight(kg/m) |
Breaking Load min (KN) |
|
|
Inside min. |
Outside max. |
|||||
|
Short Link Chain |
7*21 |
7.00 |
10 |
25.5 |
1.09 |
53 |
|
10*30 |
10.00 |
14 |
36 |
2.2 |
109 |
|
|
13*39 |
13.00 |
18.1 |
47.1 |
3.8 |
172 |
|
|
16*48 |
16.00 |
22.4 |
57.4 |
5.63 |
281 |
|
|
19*57 |
19.00 |
27.8 |
68.8 |
7.99 |
397 |
|
|
20*60 |
20.00 |
29 |
72 |
8.85 |
440 |
|

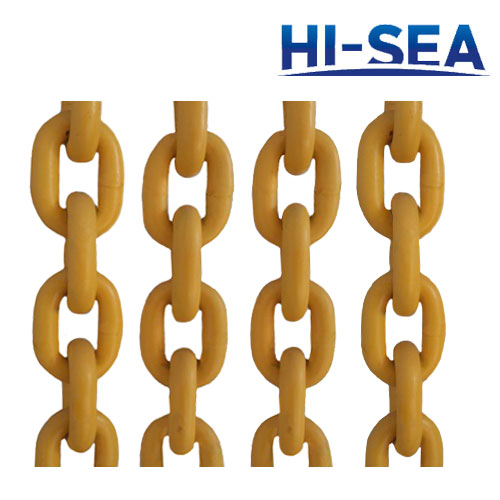

Yellow Painted Short Link Chain Fishing Chains
