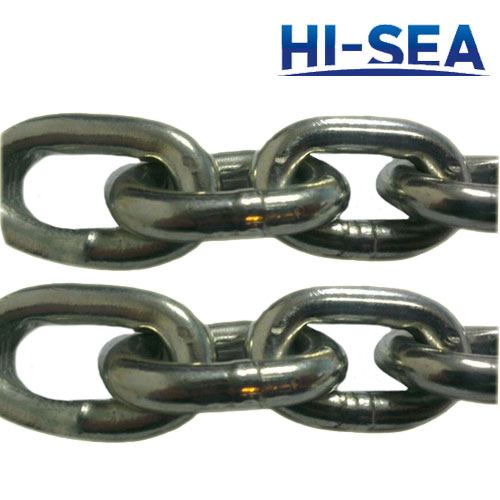

Grade 80 Mid Link Fishing Chain

Grade 80 Mid Link Fishing Chain

Fishing chains have three specifications: short link fishing chains, mid link fishing chains, long link fishing chains.

The strength of mid link chain is the same as short link chain. However, due to the smaller number of mid links per meter, the wear of inner link is less than that of short link chains. The mid link chains is lighter in weight and cheaper in price than those of short link chains. Mid link fishing chain diameter ranges from 10mm, 13mm, 14mm, 16mm, 19mm, 22mm to 26mm.

Grade 80 Mid Link Fishing Chain

Drawing of Mid Link Chain

Specifications of Mid Link Chains

1. Type: mid link fishing chains

2. Material: alloy steel

3. Grade: 80

4. Safety Factor: Minimum 4

5. Surface Treatment: bare, polished, blackened, painted, sprayed, hot dip galvanized, electronic galvanized etc.

6. Package: as required

Parameters of Mid Link Fishing Chain

Chain Type

Size(mm)

Chain Diameter(mm)

Width(mm)

Weight(kg/m)

Breaking Load min (KN)

Inside min.

Outside max.

Mid Link Chain

10*40

10.00

15

37

1.97

109

13*52

13.00

19.5

48.5

3.36

172

14*50

14.00

18.5

49.5

4.00

215

16*64

16.00

24

59

5.06

281

19*76

19.00

28.5

69.5

7.15

397

22*86

22.00

27

74

9.45

532

26*92

26.00

31

86

13.63

743

Grade 80 Mid Link Fishing Chain

Welded Galvanized Mid Link Fishing Chains
