Aluminum Alloy Explosion-proof Spot Light

Marine Aluminum Alloy Explosion-proof Spot Light

The precise design of structure make it has waterproof, dustproof, anti-corrosion, heat disspation and other excellent performance, and can be used in outdoor for a long time. The shell of it is made form high strength alloy material with advanced spraying technology on the surface , which make it has advantages of high strength, strong corrosion resistance and impact resistance.

Product Details：

1. Type: BTC8210

2. Explosion-proof mark: ExedⅡCT4/ T6 Gb

3. Voltage: AC220V/50HZ

4. Rate of Power: 250W, 400W

5. Light Source: Gas discharge lamp

6. Protection Class: IP65

7. Corrosion-proof grade: WF1

8. Weight: 9.9kg

9. Cable outside diameter: Φ9-Φ12.5

Specification：

Type	Voltage	Power	Luminous flux	Weight
BTC8210	AC220V 50HZ	250W	20500lm	9.9kg
		400W	35000lm
		250W	28000lm
		400W	48000lm

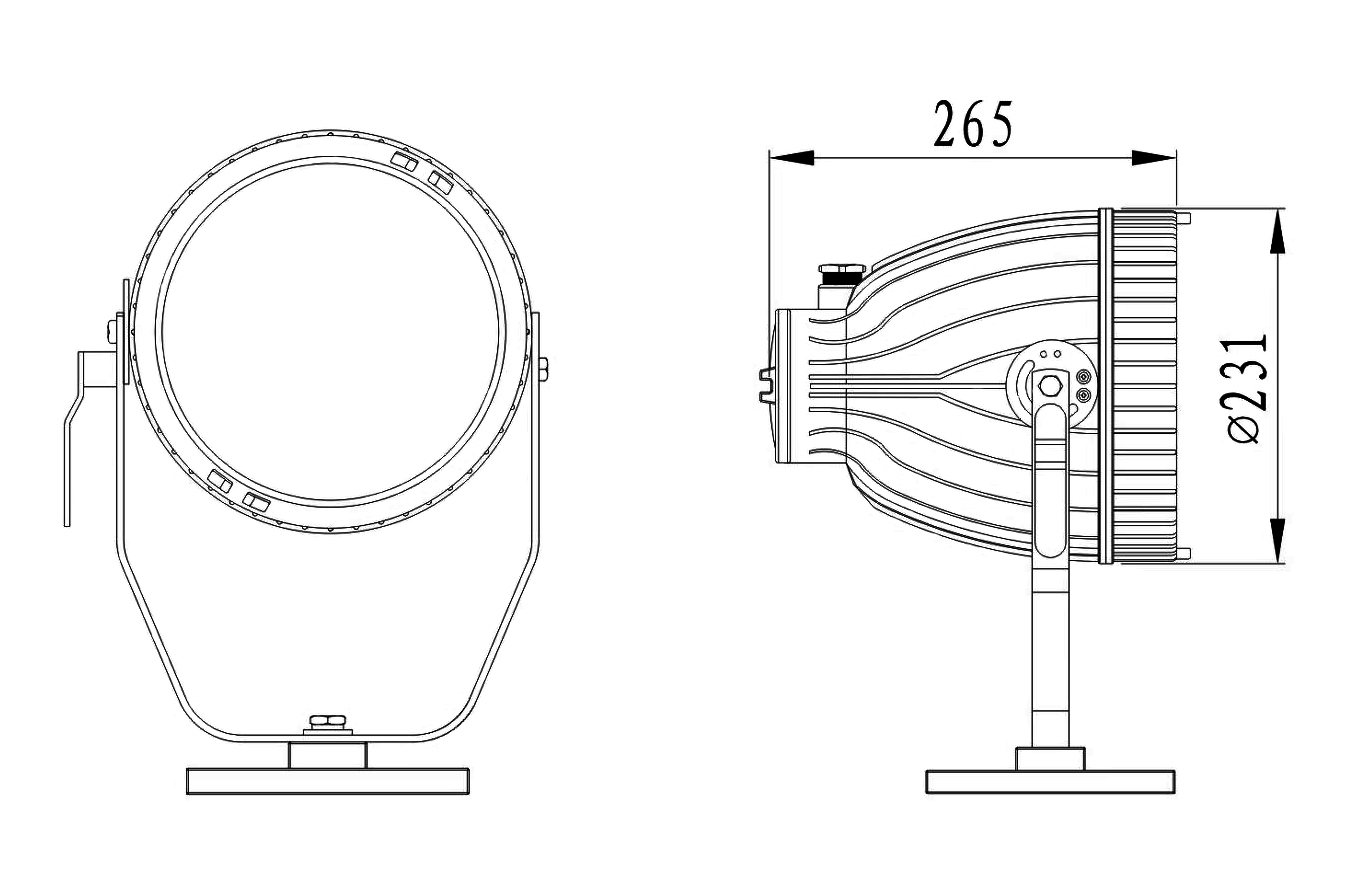

Sketch of aluminum alloy explosion-proof spot light

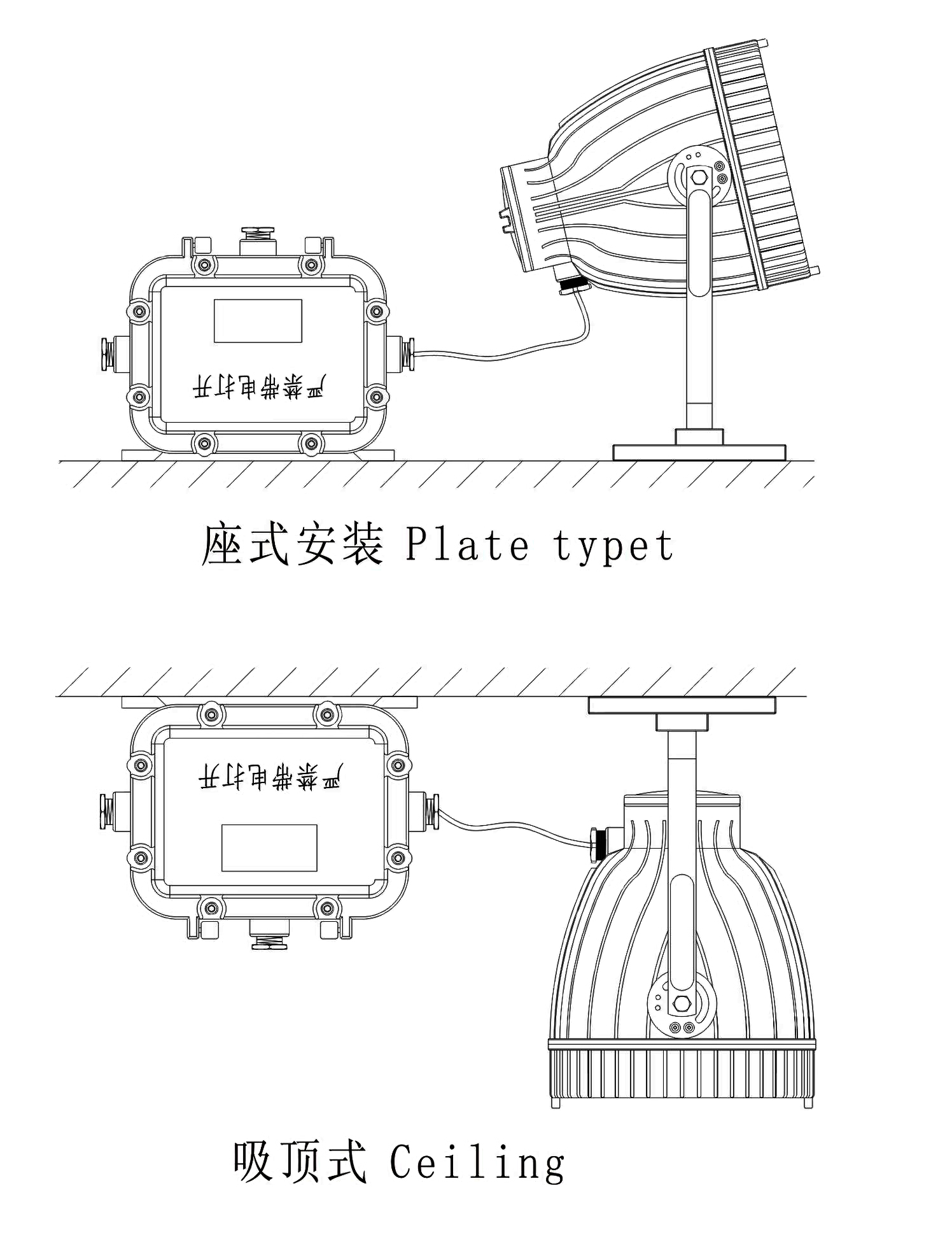

Installation of aluminum alloy explosion-proof spot light

Marine Aluminum allloy Explosion-proof Spot Light
