Explosion-proof Ballast

Explosion-proof Ballast

Explosion-proof ballast can be used in zone 1, zone 2, flammable dust areas and dangerous places. The shell of it is made of die casted aluminum alloy with plastic sprayed on the surface. It can be used to hung lamp directly, and it is suitable for steel pipe and cable wiring. Electricity capacity can be add as requirements. And please note if ⅡC or safety-increased type is needed.

Product Details:

1. Type: BAZ series

2. Explosion-proof mark: ExdⅡBT2, ExdⅡCT2

3. Voltage: AC220V/50HZ

4. Rate of Power: 70W, 80W, 100W, 110W, 115W, 150W, 175W, 250W, 400W

5. Material: Aluminum alloy

6. Protection Class: IP54, IP55

7. Corrosion-proof grade: WF1

8. Cable outside diameter: Φ9-Φ14

9. Product standard: GB3836-2000, IEC60079

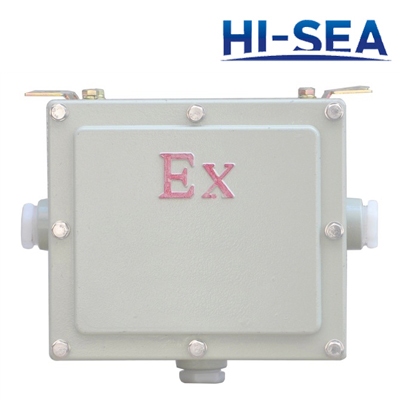

Explosion-proof Ballast-A

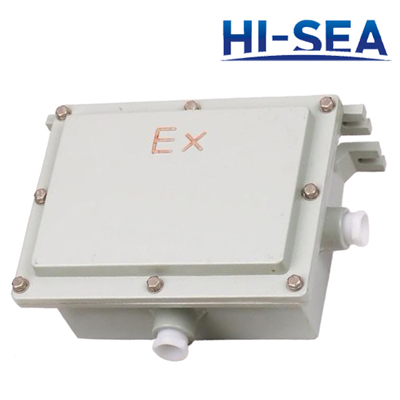

Explosion-proof Ballast-B
