Marine Explosion-proof Spot Light

[Search Related Products]

Marine Explosion-proof Spot Light

Marine Explosion-proof Spot Light

Explosion-proof spot light is suitable for the remote illumination of ship and oil platform, and can also applied to the explosive gas place zone 1, zone 2 with the temperature group T1-T4. It has good quality aluminum shell, brass net shield and toughened glass. The light body can be rorated 350 degrees horizontally and 45 degrees up and down. It has pass the examination of National Explosion-proof Safety Supervisal and Inspection Station of Luminaire.

Product Details:

1. Type: CTF1

2. Explosion-proof mark: Exed¢òBT2

3. Voltage: 220V/50HZ, 220V/60HZ

4. Rate of Power: 300W, 400W, 450W

5. Light Source: Incandescent, High-pressure mercury light, Metal halide light

6. Lampholder: E40

7. Material: Aluminum

8. Protection Class: IP56

9. Weight: 10kg

10. Cable outside diameter: ¦µ12-¦µ14.5

Specification:

Type

Voltage

Power

Illuminant

Weight

Explosion-proof mark

CFT1

220V/50HZ 220V/60HZ

300W

Incandescent

10kg

Exd ¢òBT2

400W

High-pressure mercury light

450W

Metal halide light

Marine Explosion-proof Spot Light

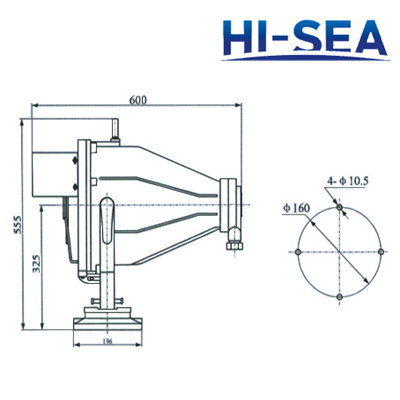

Sketch of Explosion-proof Spot Light

Marine Explosion-proof Spot Light

Marine Explosion-proof Spot Light
