Explosion-proof Fluorescent Pendant Light

Explosion-proof Fluorescent Pendant Light

Explosion-proof fluorescent pendant light is applied to ship oil exploit, chemical product and explosive gas place zone 1 or zone 2. The shell of it is made of good quality steel, and the lampshade is made of good quality transparent PC. It is integral type clip with high protection grade. And it conform to international IEC standard and GB3836, GB7000.

Product Details:

1. Type: CFY21-2

2. Explosion-proof mark: ExdⅡCT4

3. Voltage: 220V/50HZ, 220V/60HZ, 110V/60HZ

4. Rate of Power: 2*20W

5. Light Source:Fluorescent

6. Lampholder: Fa6

7. Material: Steel and PC

8. Protection Class: IP56

9. Weight: 5.8kg

10. Cable outside diameter: Φ11-Φ13

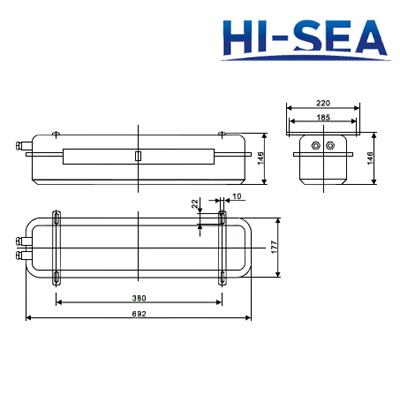

Sketch of explosion-proof fluorescent light
