Brass Incandescent Explosion-proof Light
[Search Related Products]
Brass Incandescent Explosion-proof Pendant Light
Brass incandescent explosion-proof light can be used safely and reliably in the place with explosive air mixture. The shell is made of high quality brass foundry, and the lampshade is toughened glass with brass guard. The gland has two kind, one is tube screw type, screw is G3/4, other one is bugle-type. It is conform to National standard GB3836, GB12045 THE TECHNICAL CONDITION OF MARINE EXPLOSIVE-PROOF LIGHT.
Product Details:
1. Type: CFD2, CFD3
2. Explosion-proof mark: Exd¢òBT3, Exd¢òBT4
3. Light Source:Incandescent, Self-ballast high-pressure mercury lamp
4. Lampholder: E27
5. Material: Brass
6. Protection Class: IP55, IP56
7. Cable outside diameter: ¦µ11-¦µ13
8. Approved by CCS
Specification:
Type |
Explosion-proof mark |
Voltage |
Power |
Illuminant |
Protection class |
Weight |
CFD2a |
Exd¢òBT3 |
220V |
200W |
Incandescent |
IP55 |
19kg |
CFD2b |
Exd¢òBT3 |
220V |
125W |
Self-ballast high-pressure mercury lamp |
||
CFD3 |
Exd¢òBT4 |
24V |
25W |
Incandescent |
IP56 |
13.5kg |
110V |
40W/60W |
|||||
220V |
40W/60W/100W |
|||||
CFD3-¢ñ |
Exd¢òCT4 |
24V |
25W |
8.5kg |
||
110V |
40W/60W |
|||||
220V |
40W/60W/100W |
Marine Brass Incandescent Explosion-proof Light |
|

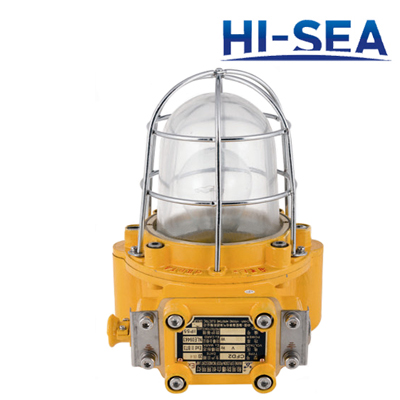

Marine brass incandescent explosion-proof light CFD2 |

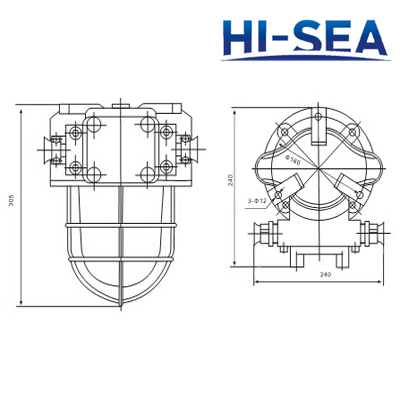

Sketch of brass incandescent explosion-proof light CFD2 |

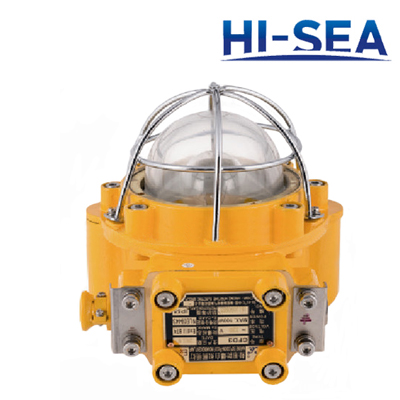

Marine brass incandescent explosion-proof light CFD3
|

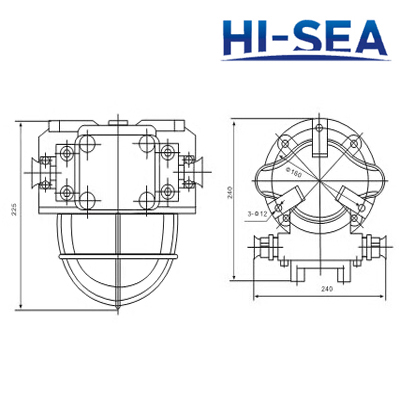

Sketch of brass incandescent explosion-proof light CFD3 |
