Anchor Chain Swivel
Anchor chain swivel is a special rotary ring to prevent the twisting of anchor chains. It connects with Grade 2 or Grade 3 anchor chains. Swivel is made from steel and its surface is hot dip galvanized. Swivel has different sizes to meet customer¡¯s special need.
We supply all types of marine equipment including both the standard and customized products. If you¡¯re interested in our products, please feel free to contact us.
Specification
1. Model Type: Swivel = SW
2. Grade 2 or Grade 3
3. Nominal Diameter: 14mm to 162mm
4. Proof Load: 82KN to 11180KN
5. Breaking Load: 116KN to 15980KN
6. Material: Steel
7. Surface Treatment: Hot Dip Galvanized and Eletro-galvanized
8. Black Paint or Other Color up to Customer¡¯s Requirement
9. Standard or Customized Production
10. Quality Controlled Product
11. Certificate: ABS, CCS, LR, BV, RINA, KR, DNV etc.

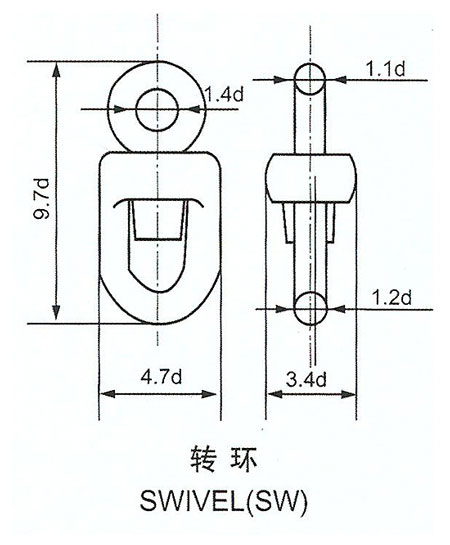

Drawing of Anchor Chain Swivel
Swivel Grade 2
|
Diameter(mm) |
Length(mm) |
Width(mm) |
Proof Load(KN) |
Breaking Load(KN) |
|
14 |
136 |
66 |
82 |
116 |
|
16 |
155 |
75 |
107 |
150 |
|
17.5 |
170 |
82 |
127 |
179 |
|
19 |
184 |
89 |
150 |
211 |
|
20.2 |
199 |
96 |
175 |
244 |
|
22 |
213 |
103 |
200 |
280 |
|
24 |
233 |
113 |
237 |
332 |
|
26 |
252 |
122 |
278 |
389 |
|
28 |
272 |
132 |
321 |
449 |
|
30 |
291 |
141 |
368 |
514 |
|
32 |
310 |
150 |
417 |
583 |
|
34 |
330 |
160 |
468 |
655 |
|
36 |
349 |
169 |
523 |
732 |
|
38 |
369 |
179 |
581 |
812 |
|
40 |
388 |
188 |
640 |
896 |
|
42 |
407 |
197 |
703 |
981 |
|
44 |
427 |
207 |
769 |
1080 |
|
46 |
446 |
216 |
837 |
1170 |
|
48 |
466 |
226 |
908 |
1270 |
|
50 |
485 |
235 |
981 |
1370 |
|
52 |
504 |
244 |
1060 |
1480 |
|
54 |
524 |
254 |
1140 |
1590 |
|
56 |
543 |
263 |
1220 |
1710 |
|
58 |
563 |
273 |
1290 |
1810 |
|
60 |
582 |
282 |
1380 |
1940 |
|
62 |
601 |
291 |
1470 |
2060 |
|
64 |
621 |
301 |
1560 |
2190 |
|
66 |
640 |
310 |
1660 |
2310 |
|
68 |
660 |
320 |
1750 |
2450 |
|
70 |
679 |
329 |
1840 |
2580 |
|
73 |
708 |
343 |
1990 |
2790 |
|
76 |
737 |
357 |
2150 |
3010 |
|
78 |
757 |
367 |
2260 |
3160 |
|
81 |
786 |
381 |
2410 |
3380 |
|
84 |
815 |
395 |
2580 |
3610 |
|
87 |
844 |
409 |
2750 |
3850 |
|
90 |
873 |
423 |
2920 |
4090 |
|
92 |
892 |
432 |
3040 |
4260 |
|
95 |
921 |
447 |
3230 |
4510 |
|
97 |
941 |
456 |
3340 |
4680 |
|
100 |
970 |
470 |
3530 |
4940 |
|
102 |
989 |
479 |
3660 |
5120 |
|
105 |
1018 |
494 |
3850 |
5390 |
|
107 |
1038 |
503 |
3980 |
5570 |
|
111 |
1077 |
522 |
4250 |
5940 |
|
114 |
1106 |
536 |
4440 |
6230 |
|
117 |
1135 |
550 |
4650 |
6510 |
|
120 |
1164 |
564 |
4850 |
6810 |
|
122 |
1183 |
573 |
5000 |
7000 |
|
124 |
1203 |
583 |
5140 |
7200 |
|
127 |
1232 |
597 |
5350 |
7490 |
|
130 |
1261 |
611 |
5570 |
7800 |
|
132 |
1280 |
620 |
5720 |
8000 |
|
137 |
1329 |
644 |
6080 |
8510 |
|
142 |
1377 |
667 |
6450 |
9030 |
|
147 |
1426 |
691 |
6840 |
9560 |
|
152 |
1474 |
714 |
7220 |
10100 |
|
157 |
1523 |
738 |
7600 |
10640 |
|
162 |
1571 |
761 |
7990 |
11180 |
Swivel
