Kenter Shackle
Kenter shackle is applicable to the connection of anchor chains. It is suitable for Grade2 and Grade3 anchor chains whose diameters is from 14mm to 162mm. Kenter shackle can be made of materials alloy steel, carbon steel or stainless steel. Its surface is hot dipped galvanized or electro galvanized.
In order to meet our customers¡¯ different needs, we provide customized service to produce the required products. The quality of all our products are strictly controlled by our technical personnel.
If you¡¯re interested in our products, please feel free to contact us.We¡¯re sincere to establish cooperation relationship with you.
Specification
1. Model Type: Kenter Shackle
2. Application: Marine Mooring
3. Grade: Grade 2& Grade 3
4. Material: Steel
5. Nominal Diameter: 14mm to 162mm
6. Proof Load: 82KN to 11180KN
7. Breaking Load: 116KN to 15980KN
8. Treatment: Drop Forged, Cast
9. Surface: Galvanized, Hot Drip Galvanized, Black Painted
10. Certificate: CCS, ABS, LR, DNV, BV, KR, GL, RINA etc.
11. Special Customized Service

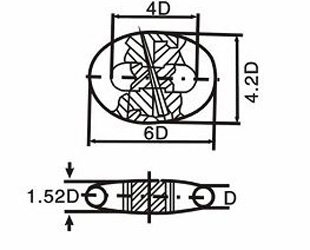

Drawing of Kenter Shackle
Kenter Shackle Grade 2
Diameter(mm) |
Length(mm) |
Width(mm) |
Proof Load(KN) |
Breaking Load(KN) |
14 |
84 |
59 |
82 |
116 |
16 |
96 |
67 |
107 |
150 |
17.5 |
105 |
74 |
127 |
179 |
19 |
114 |
80 |
150 |
211 |
20.5 |
123 |
86 |
175 |
244 |
22 |
132 |
92 |
200 |
280 |
24 |
144 |
101 |
237 |
332 |
26 |
256 |
109 |
278 |
389 |
28 |
168 |
118 |
321 |
449 |
30 |
180 |
126 |
368 |
514 |
32 |
192 |
134 |
417 |
583 |
34 |
204 |
143 |
468 |
655 |
36 |
216 |
151 |
523 |
732 |
38 |
228 |
160 |
581 |
812 |
40 |
240 |
168 |
640 |
896 |
42 |
252 |
176 |
703 |
981 |
44 |
264 |
185 |
769 |
1080 |
46 |
276 |
193 |
837 |
1170 |
48 |
288 |
202 |
908 |
1270 |
50 |
300 |
210 |
981 |
1370 |
52 |
312 |
218 |
1060 |
1480 |
54 |
324 |
227 |
1140 |
1590 |
56 |
336 |
235 |
1220 |
1710 |
58 |
348 |
244 |
1290 |
1810 |
60 |
360 |
252 |
1380 |
1940 |
62 |
372 |
260 |
1470 |
2060 |
64 |
384 |
269 |
1560 |
2190 |
66 |
396 |
277 |
1660 |
2310 |
68 |
408 |
286 |
1750 |
2450 |
70 |
420 |
294 |
1840 |
2580 |
73 |
438 |
307 |
1990 |
2790 |
76 |
456 |
319 |
2150 |
3010 |
78 |
468 |
328 |
2260 |
3160 |
81 |
486 |
340 |
2410 |
3380 |
84 |
504 |
353 |
2580 |
3610 |
87 |
522 |
365 |
2750 |
3850 |
90 |
540 |
378 |
2920 |
4090 |
92 |
552 |
386 |
3040 |
4260 |
95 |
570 |
399 |
3230 |
4510 |
97 |
582 |
407 |
3340 |
4680 |
100 |
600 |
420 |
3530 |
4940 |
102 |
612 |
428 |
3660 |
5120 |
105 |
630 |
441 |
3850 |
5390 |
107 |
642 |
449 |
3980 |
5570 |
111 |
666 |
466 |
4250 |
5940 |
114 |
684 |
479 |
4440 |
6230 |
117 |
702 |
491 |
4650 |
6510 |
120 |
720 |
504 |
4850 |
6810 |
122 |
732 |
512 |
5000 |
7000 |
124 |
744 |
521 |
5140 |
7200 |
127 |
762 |
533 |
5350 |
7490 |
130 |
780 |
546 |
5570 |
7800 |
132 |
792 |
554 |
5720 |
8000 |
137 |
822 |
575 |
6080 |
8510 |
142 |
852 |
596 |
6450 |
9030 |
147 |
882 |
617 |
6840 |
9560 |
152 |
912 |
638 |
7220 |
10100 |
157 |
942 |
659 |
7600 |
10640 |
162 |
972 |
680 |
7990 |
11180 |
