Buoy Shackle Type A
[Search Related Products]
Buoy Shackle Type A
Buoy shackle is a shackle that connects anchor chains for mooring the ships to mooring buoys. Mooring buoy shackle has two types: type A and type B. Type A buoy shackle has two legs on the body which are connected by a strut. This type of shackle is connected to the common link of anchor chains with a kenter type joining shackle.
We can supply different types of anchor chain shackles and other anchor chain accessories. If you want to know more information about our product, please feel free to contact us.
Specification
1. Model Type: Buoy Shackle Type A
2. Material: Steel
3. Grade 2 & Grade 3
4. Nominal Diameter for Chains: 38mm to 90mm
5. Weight: 28kg to 345kg
6. Treatment: Drop Forged or Cast
7. Surface: Hot Dip Galvanized, Self Color
8. Size: Depends on Customer¡¯s Requirement
9. Certificate: CCS, ABS, BV, DNV, KR, RINA etc.
10. Standard or Customized Production are Available

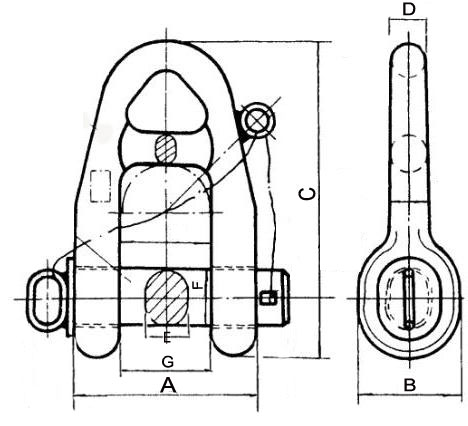

Drawing of Mooring Buoy Shackle Type A
Nominal Diameter for Chain d(mm) |
A |
B |
C |
D |
E |
F |
G |
Mass(kg) |
38 |
225 |
113 |
395 |
42 |
53 |
80 |
150 |
28 |
40 |
234 |
118 |
406 |
44 |
56 |
83 |
150 |
31 |
42 |
243 |
125 |
416 |
46 |
59 |
85 |
150 |
35 |
44 |
254 |
130 |
427 |
48 |
62 |
88 |
150 |
41 |
46 |
264 |
136 |
438 |
51 |
64 |
90 |
150 |
46 |
48 |
275 |
141 |
458 |
53 |
67 |
92 |
160 |
52 |
50 |
288 |
148 |
470 |
55 |
70 |
95 |
160 |
59 |
52 |
299 |
153 |
490 |
57 |
73 |
98 |
170 |
67 |
54 |
313 |
161 |
504 |
59 |
76 |
101 |
170 |
74 |
56 |
321 |
165 |
524 |
62 |
78 |
104 |
180 |
83 |
58 |
334 |
172 |
538 |
64 |
81 |
108 |
180 |
93 |
60 |
345 |
177 |
549 |
66 |
84 |
111 |
180 |
102 |
62 |
358 |
184 |
561 |
68 |
87 |
115 |
180 |
113 |
64 |
369 |
189 |
594 |
70 |
90 |
119 |
200 |
123 |
66 |
379 |
195 |
606 |
73 |
92 |
122 |
200 |
136 |
68 |
390 |
200 |
617 |
75 |
95 |
125 |
200 |
148 |
70 |
403 |
207 |
628 |
77 |
98 |
127 |
200 |
161 |
73 |
421 |
215 |
645 |
80 |
102 |
132 |
200 |
182 |
76 |
435 |
223 |
663 |
84 |
106 |
137 |
200 |
205 |
78 |
448 |
230 |
675 |
86 |
109 |
140 |
200 |
222 |
81 |
468 |
242 |
697 |
89 |
114 |
146 |
200 |
250 |
84 |
483 |
251 |
716 |
93 |
119 |
152 |
200 |
279 |
87 |
497 |
259 |
735 |
96 |
123 |
158 |
200 |
311 |
90 |
513 |
267 |
753 |
99 |
127 |
164 |
200 |
345 |
