Buoy Shackle Type B
Buoy shackle type B is one bow type shackle, which is used to connect anchor chains to the mooring buoys.Type B mooring buoy shackle is joined with the end link of anchor chains. It is suitable for grade2 or grade 3 anchor chains. It is made from forged steel or cast steel. The size of it is up to customer¡¯s choice.
We supply both type A and B mooring buoy shackles.If you want to know more about our shackles or other marine equipment, please feel free to contact us.
Specification
1. Model Type: Buoy Shackle Type B
2. Material: Steel
3. Grade 2 & Grade 3
4. Nominal Diameter for Chains: 38mm to 90mm
5. Weight: 26kg to 332kg
6. Treatment: Drop Forged or Cast
7. Surface: Hot Dip Galvanized, Self Color
8. Size: Depends on Customer¡¯s Requirement
9. Certificate: CCS, ABS, BV, DNV, KR, RINA etc.
10. Standard or Customized Production are Available

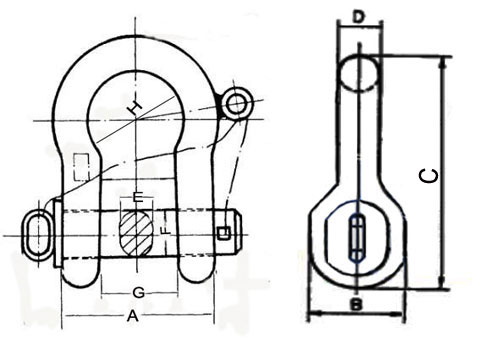

Drawing of Mooring Buoy Shackle Type B
Nominal Diameter for Chain d(mm) |
A |
B |
C |
D |
E |
F |
G |
H |
Mass(kg) |
38 |
225 |
113 |
375 |
60 |
53 |
80 |
150 |
188 |
26 |
40 |
234 |
118 |
384 |
62 |
56 |
83 |
150 |
188 |
30 |
42 |
243 |
125 |
394 |
63 |
59 |
85 |
150 |
188 |
34 |
44 |
254 |
130 |
401 |
66 |
62 |
88 |
150 |
188 |
39 |
46 |
264 |
136 |
410 |
69 |
64 |
90 |
150 |
188 |
45 |
48 |
275 |
141 |
429 |
72 |
67 |
92 |
160 |
200 |
51 |
50 |
288 |
148 |
440 |
75 |
70 |
95 |
160 |
200 |
57 |
52 |
299 |
153 |
460 |
78 |
73 |
98 |
170 |
213 |
64 |
54 |
313 |
161 |
472 |
81 |
76 |
101 |
170 |
213 |
72 |
56 |
321 |
165 |
491 |
84 |
78 |
104 |
180 |
225 |
80 |
58 |
334 |
172 |
503 |
87 |
81 |
108 |
180 |
225 |
89 |
60 |
345 |
177 |
513 |
90 |
84 |
111 |
180 |
225 |
99 |
62 |
358 |
184 |
525 |
93 |
87 |
115 |
180 |
225 |
109 |
64 |
369 |
189 |
556 |
96 |
90 |
119 |
200 |
250 |
119 |
66 |
379 |
195 |
566 |
99 |
92 |
122 |
200 |
250 |
131 |
68 |
390 |
200 |
576 |
102 |
95 |
125 |
200 |
250 |
143 |
70 |
403 |
207 |
586 |
105 |
98 |
127 |
200 |
250 |
154 |
73 |
421 |
215 |
601 |
109 |
102 |
132 |
200 |
250 |
175 |
76 |
435 |
223 |
615 |
113 |
106 |
137 |
200 |
250 |
197 |
78 |
448 |
230 |
625 |
116 |
109 |
140 |
200 |
250 |
213 |
81 |
468 |
242 |
641 |
119 |
114 |
146 |
200 |
250 |
239 |
84 |
483 |
251 |
655 |
122 |
119 |
152 |
200 |
250 |
268 |
87 |
497 |
259 |
670 |
127 |
123 |
158 |
200 |
250 |
298 |
90 |
513 |
267 |
684 |
130 |
127 |
164 |
200 |
250 |
332 |
