Anchor Swivel Shackle Type B
Anchor swivel shackle type B is one type of swivel shackles, which is a joining link that connects the anchor and chain cable. It works as a swivel and a shackle. Swivel shackle is suitable for the connection of Grade 2 and Grade 3 anchor chains. Type B swivel shackle can be directly connected with anchor shackle and be joined with anchor shank.
We not only supply swivel shackles but also other anchor chain accessories. If you¡¯re interested in our products, please do not hesitate to contact us via an e-mail or a phone call.
Specification
1. Model Type: Swivel Shackle Type B = A.SW.S (b)
2. Material: Steel (Forged Steel or Cast Steel)
3. Grade: Grade 2 & Grade 3
4. Application: Anchor Chains Connection
5. Nominal Diameter: 22mm to 117mm
6. Weight: 7.6kg to 1147kg
7. Surface: Black Painted, Hot Dip Galvanized
8. Certificate: CCS,ABS, BV, DNV, KR, NK,RINA etc.
9. Standard or Customized Products

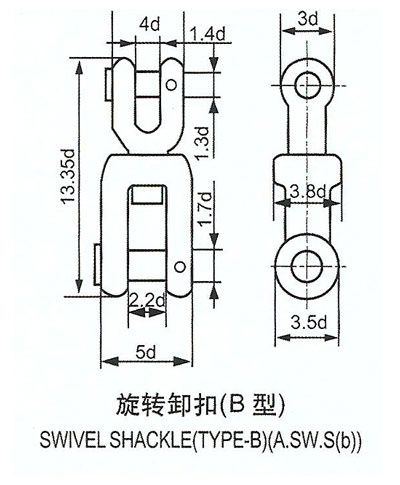

Drawing of Swivel Shackle Type B
Nominal Diameter of Anchor Chain d |
Swivel Shackle Type B AM2 AM3 |
Weight(kg |
|||||
L |
B |
B1 |
D |
D1 |
c |
||
22 |
204 |
110 |
88 |
77 |
66 |
84 |
7.6 |
24 |
321 |
120 |
96 |
84 |
72 |
91 |
9.9 |
26 |
347 |
130 |
104 |
91 |
78 |
99 |
12.5 |
28 |
374 |
140 |
112 |
98 |
84 |
106 |
15.7 |
30 |
401 |
150 |
120 |
105 |
90 |
114 |
9.4 |
32 |
427 |
160 |
128 |
112 |
96 |
122 |
23.4 |
34 |
454 |
170 |
136 |
119 |
102 |
129 |
28 |
36 |
481 |
180 |
144 |
126 |
108 |
137 |
33.4 |
38 |
508 |
190 |
152 |
133 |
114 |
144 |
39.4 |
40 |
534 |
200 |
160 |
140 |
120 |
152 |
46 |
42 |
561 |
210 |
168 |
147 |
126 |
160 |
53 |
44 |
588 |
220 |
176 |
154 |
132 |
167 |
61 |
46 |
615 |
230 |
184 |
161 |
138 |
175 |
70 |
48 |
641 |
240 |
192 |
168 |
144 |
182 |
79 |
50 |
668 |
250 |
200 |
175 |
150 |
190 |
89 |
52 |
695 |
260 |
208 |
182 |
156 |
198 |
101 |
54 |
721 |
270 |
216 |
189 |
162 |
205 |
113 |
56 |
748 |
280 |
224 |
196 |
168 |
213 |
126 |
58 |
775 |
290 |
232 |
203 |
174 |
220 |
140 |
60 |
802 |
300 |
240 |
210 |
180 |
228 |
155 |
62 |
828 |
310 |
248 |
217 |
186 |
236 |
171 |
64 |
855 |
320 |
256 |
224 |
192 |
243 |
188 |
66 |
882 |
330 |
264 |
231 |
198 |
251 |
206 |
68 |
908 |
340 |
272 |
238 |
204 |
258 |
246 |
70 |
935 |
350 |
280 |
245 |
210 |
266 |
246 |
73 |
975 |
365 |
292 |
255 |
219 |
289 |
314 |
76 |
1015 |
380 |
304 |
266 |
228 |
289 |
314 |
78 |
1042 |
390 |
312 |
273 |
234 |
296 |
340 |
81 |
1082 |
405 |
324 |
286 |
243 |
308 |
380 |
84 |
1122 |
420 |
336 |
294 |
252 |
319 |
424 |
87 |
1162 |
435 |
348 |
305 |
261 |
331 |
472 |
90 |
1202 |
450 |
360 |
315 |
270 |
342 |
522 |
92 |
1229 |
460 |
368 |
322 |
276 |
350 |
558 |
95 |
1269 |
475 |
380 |
333 |
285 |
361 |
614 |
97 |
1296 |
485 |
388 |
340 |
291 |
369 |
654 |
100 |
1336 |
500 |
400 |
350 |
300 |
380 |
717 |
102 |
1363 |
510 |
408 |
357 |
306 |
388 |
761 |
105 |
1403 |
525 |
420 |
368 |
315 |
399 |
830 |
107 |
1430 |
535 |
428 |
375 |
321 |
407 |
879 |
111 |
1483 |
555 |
444 |
389 |
333 |
422 |
980 |
114 |
1523 |
570 |
456 |
399 |
342 |
433 |
1062 |
117 |
1563 |
585 |
468 |
410 |
351 |
445 |
1147 |

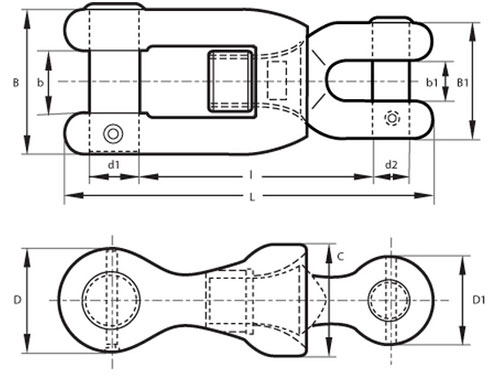

Drawing of Anchor Swivel Shackle (b)
