Boat Mooring Anchor:
Material AH32 UP TO EH36 was certified by the Classification Society.
Certification CCS,BV,GL,KR,NK,LR,ABS,DNV,
Application:Tug drag anchor,drill ship,Oil platforms etc
Features
With stronger construction,shark teeth, sharp fluke edges,fluke tips.
Optionally the hollow fluke can be ballasted to assist initial penetration.
Holding efficiency(ratio of holding power to weight) 33:1 to 55:1
Ultimate holding power near 100:1
Under netrual soil,the max. insert deepth 25m to 30m,dragging distance 150m to 200m.
|
Nominal Weight |
Size(mm) |
Shackle |
|||||||
|
(KG) |
A |
B |
C |
E |
F |
H |
T |
S |

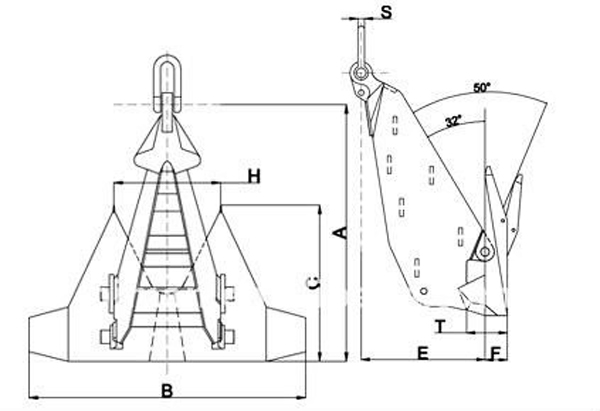

Model |
|
1000 |
2580 |
2780 |
1582 |
1314 |
236 |
1074 |
430 |
62 |
a14 |
|
1500 |
2954 |
3187 |
1812 |
1505 |
271 |
1230 |
493 |
80 |
a17 |
|
3000 |
3721 |
4011 |
2283 |
1896 |
342 |
1550 |
622 |
90 |
a19 |
|
5000 |
4412 |
4756 |
2707 |
2248 |
406 |
1837 |
738 |
110 |
a23 |
|
7000 |
4910 |
5290 |
3011 |
2500 |
453 |
2045 |
825 |
117 |
a25 |
|
8000 |
5161 |
5563 |
3166 |
2629 |
474 |
2149 |
862 |
130 |
a27 |
|
10000 |
5559 |
5992 |
3410 |
2832 |
511 |
2315 |
929 |
140 |
a29 |
|
12000 |
5908 |
6368 |
3624 |
3010 |
543 |
2460 |
988 |
150 |
a31 |
|
14000 |
6219 |
6704 |
3815 |
3169 |
572 |
2590 |
1040 |
160 |
a33 |
|
15000 |
6364 |
6860 |
3904 |
3242 |
585 |
2650 |
1064 |
170 |
a34 |
|
18000 |
6763 |
7290 |
4149 |
3446 |
622 |
2816 |
1131 |
180 |
a35 |
|
20000 |
7004 |
7550 |
4297 |
3569 |
644 |
2917 |
1171 |
190 |
a37 |
|
22000 |
7230 |
7794 |
4436 |
3684 |
665 |
3011 |
1209 |
200 |
a39 |
|
25000 |
7545 |
8133 |
4629 |
3844 |
694 |
3142 |
1262 |
200 |
a39 |
|
30000 |
8018 |
8645 |
4919 |
4085 |
737 |
3339 |
1341 |
220 |
a42 |
