HSk5 Offshore Anchor
[Search Related Products]
HSK5, facilitates performance in hard soils such as limestone, calcarenite, very dense sands and coral. its modifications include a stronger construction, shark teeth, sharp fluke edges and fluke tips. Optionally the hollow fluke can be ballasted to assist initial penetration.
Offshore Anchor:
Material AH32 UP TO EH36 was certified by the Classification Society.
Certification CCS,BV,GL,KR,NK,LR,ABS,DNV,
Application:Tug drag anchor,drill ship,Oil platforms etc
|
Nominal Weight |

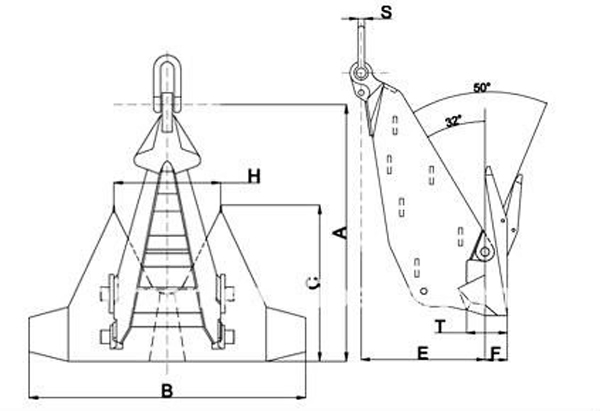

Size(mm) |
Shackle |
|||||||
|
(KG) |
A |
B |
C |
E |
F |
H |
T |
S |
Model |
|
1000 |
2580 |
2780 |
1582 |
1314 |
236 |
1074 |
430 |
62 |
a14 |
|
1500 |
2954 |
3187 |
1812 |
1505 |
271 |
1230 |
493 |
80 |
a17 |
|
3000 |
3721 |
4011 |
2283 |
1896 |
342 |
1550 |
622 |
90 |
a19 |
|
5000 |
4412 |
4756 |
2707 |
2248 |
406 |
1837 |
738 |
110 |
a23 |
|
7000 |
4910 |
5290 |
3011 |
2500 |
453 |
2045 |
825 |
117 |
a25 |
|
8000 |
5161 |
5563 |
3166 |
2629 |
474 |
2149 |
862 |
130 |
a27 |
|
10000 |
5559 |
5992 |
3410 |
2832 |
511 |
2315 |
929 |
140 |
a29 |
|
12000 |
5908 |
6368 |
3624 |
3010 |
543 |
2460 |
988 |
150 |
a31 |
|
14000 |
6219 |
6704 |
3815 |
3169 |
572 |
2590 |
1040 |
160 |
a33 |
|
15000 |
6364 |
6860 |
3904 |
3242 |
585 |
2650 |
1064 |
170 |
a34 |
|
18000 |
6763 |
7290 |
4149 |
3446 |
622 |
2816 |
1131 |
180 |
a35 |
|
20000 |
7004 |
7550 |
4297 |
3569 |
644 |
2917 |
1171 |
190 |
a37 |
|
22000 |
7230 |
7794 |
4436 |
3684 |
665 |
3011 |
1209 |
200 |
a39 |
|
25000 |
7545 |
8133 |
4629 |
3844 |
694 |
3142 |
1262 |
200 |
a39 |
|
30000 |
8018 |
8645 |
4919 |
4085 |
737 |
3339 |
1341 |
220 |
a42 |
