HSK5 Marine Anchor

[Search Related Products]

HSK5 Marine Anchor


HSK5 Marine Anchor:

We produce marine anchors since 1996, include stockless bower anchor, stock anchor, offshore anchors, etc. and our anchors have been approved by ABS, LR, BV, NK, DNV, GL, NK, KR, IRS, CCS Ceritificate. Good quality, Punctual shipment and Good service will make your business goes smoothly, we would be your reliable partner in China.

Anchor material: Q345B
Shackle material: ZG200-400
Spindle and pintle material 35#


Application:
The majority of the HSK5 marine anchor applications are found in permanent mooring systems such as FPSOs(Floating Production Storage and Offloading), FSUs, SPMs(Single Point Mooring) and in temporary mooring systems for moble drilling units(MODUs).


Advantage:

1. High holding power anchor;

2. Easy to handle;

3. Can work under the toughest deepwater condition;

4. High quality, stable performance;

5. Applicable to a wide range of soils


Details:

1.Material: Steel plate
2.Weight: 1000kgs to 30000kgs
3.Certificate:CCS, ABS, LR, GL, NK, RS, DNV, KR, BV, RINA

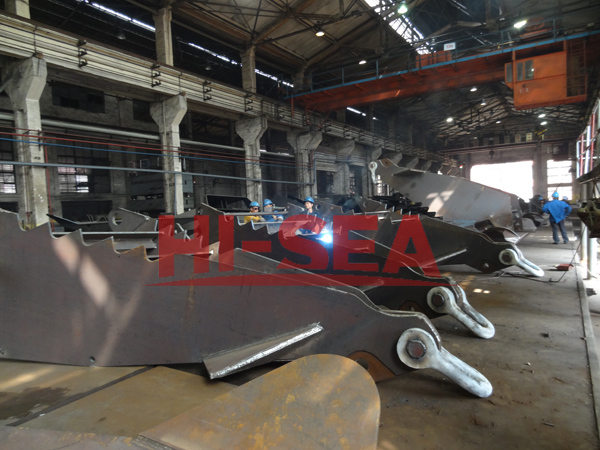

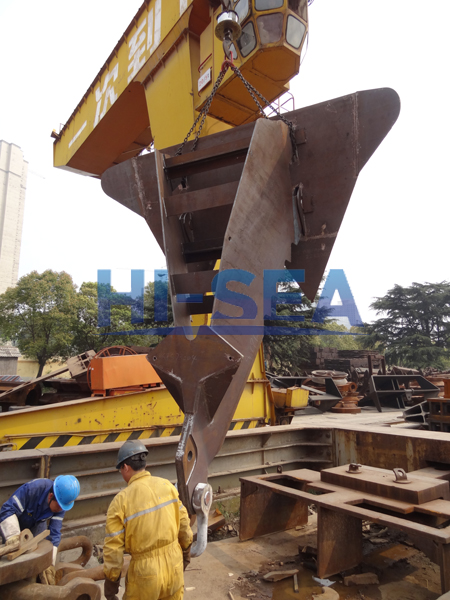

HSK5 Marine Anchor

HSK5 Marine Anchor
HSK5 Marine Anchor

HSK5 Marine Anchor


HSK5 Marine Anchor

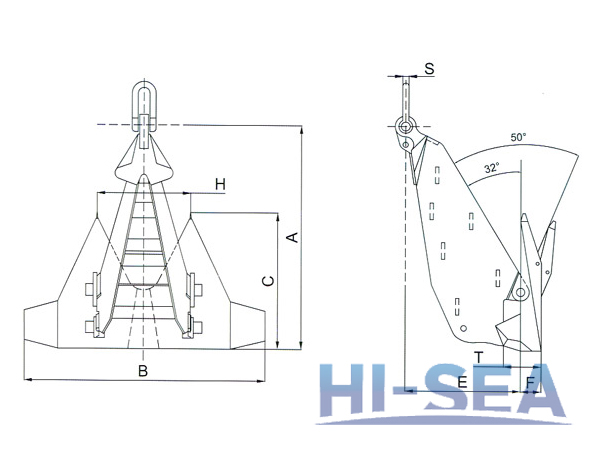

HSK5 Marine Anchor Drawing

Specifications:


Nominal Weight (kg) Dimensions (mm)
A B C E F H T S
1,500 2,954 3,184 1,812 1,505 271 1,230 493 ¦µ80
3,000 3,721 4,011 2,283 1,896 342 1,550 622 ¦µ90
5,000 4,412 4,756 2,707 2,248 406 1,837 738 ¦µ110
7,000 4,910 5,290 3,011 2,500 453 2,045 825 ¦µ117
8,000 5,161 5,563 3,166 2,629 474 2,149 862 ¦µ130
10,000 5,559 5,992 3,410 2,832 511 2,315 929 ¦µ140
12,000 5,908 6,368 3,624 3,010 543 2,460 988 ¦µ150
15,000 6,364 6,860 3,904 3,242 585 2,650 1,064 ¦µ170
18,000 6,763 7,290 4,149 3,446 622 2,816 1,131 ¦µ180
20,000 7,004 7,550 4,297 3,569 644 2,917 1,171 ¦µ190
22,000 7,230 7,794 4,436 3,684 665 3,011 1,209 ¦µ200
25,000 7,545 8,133 4,629 3,844 694 3,142 1,262 ¦µ200


How to order?

1. Type?

2. Weight?

3. Quantity?

4. Society Classification Certificate?


Contact with us now

Our mail: manager@hiseamarine.com
