HSK3 Anchor:
Application:
The majority of the HSK6 anchor applications are found in permanent mooring systems such as FPSOs(Floating Production Storage and Offloading), FSUs, SPMs(Single Point Mooring) and in temporary mooring systems for moble drilling units(MODUs).
Advantage:
1. High holding power anchor;
2. Easy to handle;
3. Can work under the toughest deepwater condition;
4. High quality, stable performance;
5. Applicable to a wide range of soils
Details:
1.Material: Steel plate
2.Weight: 1000kgs to 30000kgs
3.Certificate:CCS, ABS, LR, GL, NK, RS, DNV, KR, BV, RINA
HSK3 Anchor
HSK3 Anchor

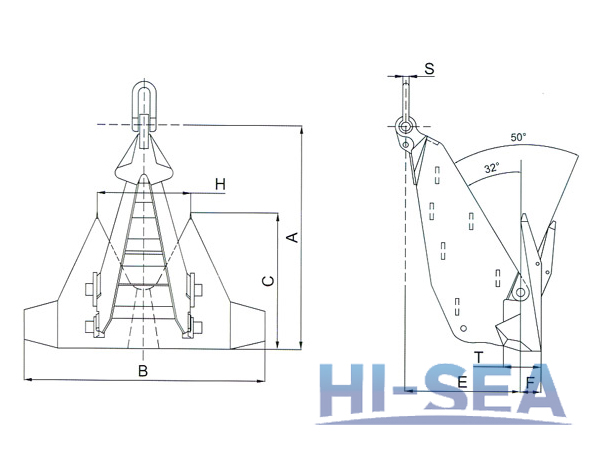

HSK3 Anchor Drawing
Specifications:
| Nominal Weight (kg) | Dimensions (mm) | |||||||
| A | B | C | E | F | H | T | S | |
| 1,500 | 2,954 | 3,184 | 1,812 | 1,505 | 271 | 1,230 | 493 | Φ80 |
| 3,000 | 3,721 | 4,011 | 2,283 | 1,896 | 342 | 1,550 | 622 | Φ90 |
| 5,000 | 4,412 | 4,756 | 2,707 | 2,248 | 406 | 1,837 | 738 | Φ110 |
| 7,000 | 4,910 | 5,290 | 3,011 | 2,500 | 453 | 2,045 | 825 | Φ117 |
| 8,000 | 5,161 | 5,563 | 3,166 | 2,629 | 474 | 2,149 | 862 | Φ130 |
| 10,000 | 5,559 | 5,992 | 3,410 | 2,832 | 511 | 2,315 | 929 | Φ140 |
| 12,000 | 5,908 | 6,368 | 3,624 | 3,010 | 543 | 2,460 | 988 | Φ150 |
| 15,000 | 6,364 | 6,860 | 3,904 | 3,242 | 585 | 2,650 | 1,064 | Φ170 |
| 18,000 | 6,763 | 7,290 | 4,149 | 3,446 | 622 | 2,816 | 1,131 | Φ180 |
| 20,000 | 7,004 | 7,550 | 4,297 | 3,569 | 644 | 2,917 | 1,171 | Φ190 |
| 22,000 | 7,230 | 7,794 | 4,436 | 3,684 | 665 | 3,011 | 1,209 | Φ200 |
| 25,000 | 7,545 | 8,133 | 4,629 | 3,844 | 694 | 3,142 | 1,262 | Φ200 |
For any interests please feel free to contact with us, we will alway give you prompt attention.
