HSK6 Ship Anchor
Anchor material: Q345B
Shackle material: ZG200-400
Spindle and pintle material 35#
Application:
The majority of the HSK6 ship anchor applications are found in permanent mooring systems such as FPSOs(Floating Production Storage and Offloading), FSUs, SPMs(Single Point Mooring) and in temporary mooring systems for moble drilling units(MODUs).
Advantage:
1. High holding power anchor;
2. Easy to handle;
3. Can work under the toughest deepwater condition;
4. High quality, stable performance;
5. Applicable to a wide range of soils
HSK6 Ship Anchor

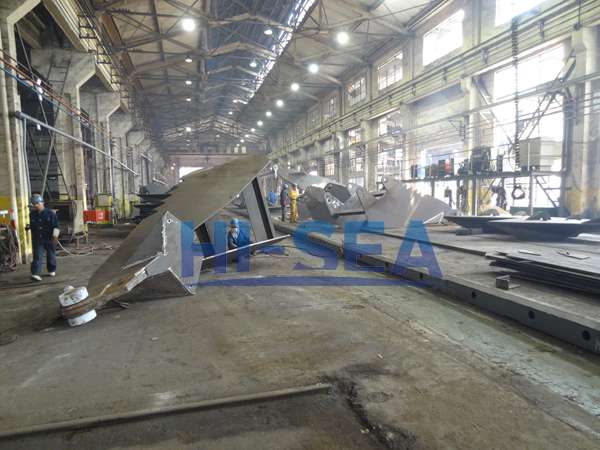

HSK6 Ship Anchor Factory

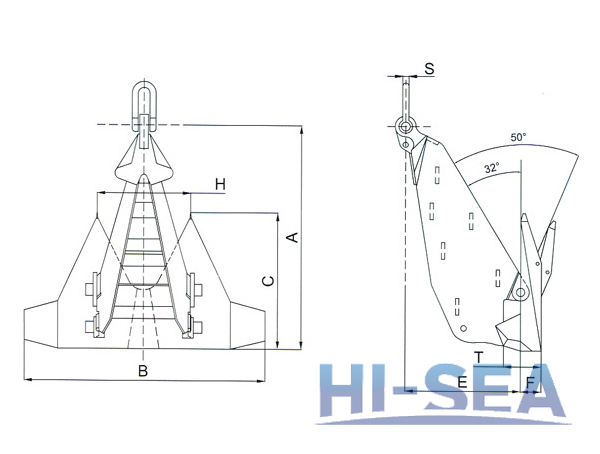

HSK6 Ship Anchor Drawing
Specification:
| Nominal Weight (kg) | Dimensions (mm) | |||||||
| A | B | C | E | F | H | T | S | |
| 1,500 | 2,954 | 3,184 | 1,812 | 1,505 | 271 | 1,230 | 493 | Φ80 |
| 3,000 | 3,721 | 4,011 | 2,283 | 1,896 | 342 | 1,550 | 622 | Φ90 |
| 5,000 | 4,412 | 4,756 | 2,707 | 2,248 | 406 | 1,837 | 738 | Φ110 |
| 7,000 | 4,910 | 5,290 | 3,011 | 2,500 | 453 | 2,045 | 825 | Φ117 |
| 8,000 | 5,161 | 5,563 | 3,166 | 2,629 | 474 | 2,149 | 862 | Φ130 |
| 10,000 | 5,559 | 5,992 | 3,410 | 2,832 | 511 | 2,315 | 929 | Φ140 |
| 12,000 | 5,908 | 6,368 | 3,624 | 3,010 | 543 | 2,460 | 988 | Φ150 |
| 15,000 | 6,364 | 6,860 | 3,904 | 3,242 | 585 | 2,650 | 1,064 | Φ170 |
| 18,000 | 6,763 | 7,290 | 4,149 | 3,446 | 622 | 2,816 | 1,131 | Φ180 |
| 20,000 | 7,004 | 7,550 | 4,297 | 3,569 | 644 | 2,917 | 1,171 | Φ190 |
| 22,000 | 7,230 | 7,794 | 4,436 | 3,684 | 665 | 3,011 | 1,209 | Φ200 |
| 25,000 | 7,545 | 8,133 | 4,629 | 3,844 | 694 | 3,142 | 1,262 | Φ200 |
Please contact us for any interests, we will always give you prompt attention.
