Braided Type Round Sling

Braided Type Round Sling:

Braided type round sling can improve the compositive capacity, also be used dividually. It is also featured by lightweight, long service lifetime, shock absorption, non-conducting and non-corroding. All sizes are available and the price is very competitive. If you are interested in this product, welcome to contact with us.

Details:

1. Model: Braided Type Round Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements
Specification:

Working load limited

Minimum length

Eye length

Approx width

Approx thickness

Eye diameter

Weight(6:1)

kg

m

mm

mm

mm

mm

kg/m

3000

1.5

380

82

20

40

1.24

6000

1.5

380

96

28

44

1.86

9000

1.8

460

108

32

51

2.83

12000

1.8

460

114

36

57

3.35

15000

2.2

640

133

44

64

4.46

18000

2.4

640

139

51

70

5.22

24000

2.7

760

168

57

88

7.28

30000

3.0

840

198

62

98

9.22

36000

3.2

960

230

68

108

11.24

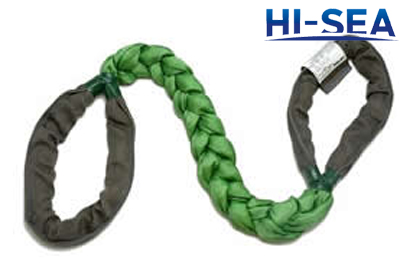

Polyester Braided Type Round Lifting Sling

Structure:

Working load limited	Minimum length	Eye length	Approx width	Approx thickness	Eye diameter	Weight(6:1)
kg	m	mm	mm	mm	mm	kg/m
3000	1.5	380	82	20	40	1.24
6000	1.5	380	96	28	44	1.86
9000	1.8	460	108	32	51	2.83
12000	1.8	460	114	36	57	3.35
15000	2.2	640	133	44	64	4.46
18000	2.4	640	139	51	70	5.22
24000	2.7	760	168	57	88	7.28
30000	3.0	840	198	62	98	9.22
36000	3.2	960	230	68	108	11.24

Lifting Sling

Braided Type Round Sling
