Endless Type Round Sling

Endless Type Round Sling:

Endless type round sling is compact in structure and with multiple suspension points. The contact area with the object is large. The sling body is thick and its surface is flat and wear resistant. In addition to that, the sling is characterized by lightweight, long service lifetime, shock absorption, non-conducting and non-corroding. If you are interested in this product, please feel free to get in touch with us.

Details:

1. Model: Endless Type Round Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements

Specification:

Working Load Limited

Approx thickness

Approx width

L

Weight

Minimum length

Maximum length

(6:1)

(7:1)

kg

mm

mm

m

m

kg/m

kg/m

1000

6

40

0.5

To be customized

0.30

0.35

2000

7

50

0.5

0.44

0.52

3000

8

60

0.5

0.65

0.74

4000

9

70

0.5

0.83

0.91

5000

11

75

0.5

1.01

1.29

6000

12

80

1.0

1.19

1.39

8000

13

90

1.0

1.50

1.75

10000

15

100

2.0

1.95

2.28

12000

16

110

2.0

2.46

2.87

15000

18

125

2.0

2.97

3.47

20000

20

150

2.5

4.66

5.44

25000

24

180

2.5

5.84

6.82

30000

32

200

2.5

9.23

10.80

40000

40

200

2.5

12.10

14.20

50000

45

220

2.5

14.10

16.30

60000

65

240

4.0

17.30

20.20

80000

70

260

4.0

22.20

25.90

100000

80

290

4.0

26.00

30.30

200000

120

450

5.0

64.00

74.60

300000

160

525

5.0

79.00

92.20

400000

200

670

5.0

98.40

114.80

500000

220

750

8.0

121.20

141.40

600000

240

820

8.0

145.00

169.20

700000

260

870

8.0

168.00

196.00

800000

280

930

9.0

192.00

224.00

900000

300

990

9.0

215.00

250.10

1000000

320

1050

9.0

238.00

277.70

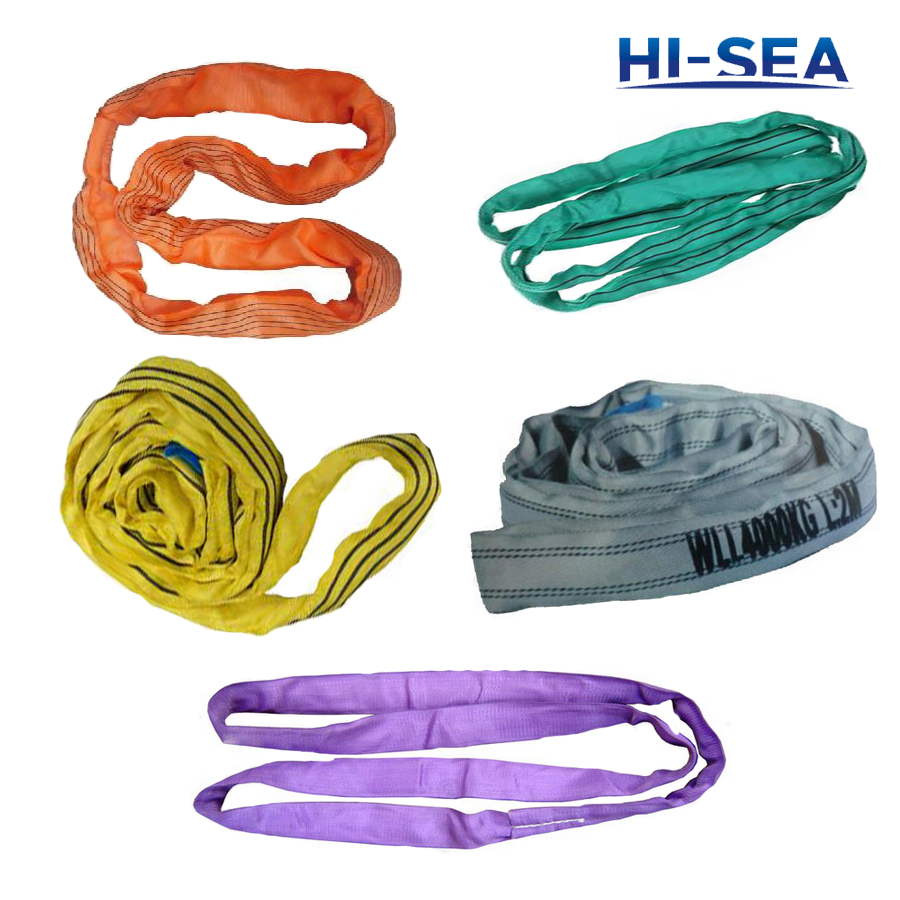

Endless Type Round Sling(orange, green, yellow, grey, purple)

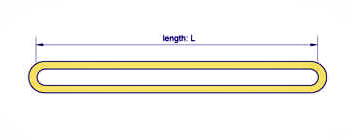

Structure:

Endless Type Round Sling

Lifting Sling

Endless Type Round Sling

Contact with us now

Working Load Limited	Approx thickness	Approx width	L		Weight
Working Load Limited	Approx thickness	Approx width	Minimum length	Maximum length	(6:1)	(7:1)
kg	mm	mm	m	m	kg/m	kg/m
1000	6	40	0.5	To be customized	0.30	0.35
2000	7	50	0.5		0.44	0.52
3000	8	60	0.5		0.65	0.74
4000	9	70	0.5		0.83	0.91
5000	11	75	0.5		1.01	1.29
6000	12	80	1.0		1.19	1.39
8000	13	90	1.0		1.50	1.75
10000	15	100	2.0		1.95	2.28
12000	16	110	2.0		2.46	2.87
15000	18	125	2.0		2.97	3.47
20000	20	150	2.5		4.66	5.44
25000	24	180	2.5		5.84	6.82
30000	32	200	2.5		9.23	10.80
40000	40	200	2.5		12.10	14.20
50000	45	220	2.5		14.10	16.30
60000	65	240	4.0		17.30	20.20
80000	70	260	4.0		22.20	25.90
100000	80	290	4.0		26.00	30.30
200000	120	450	5.0		64.00	74.60
300000	160	525	5.0		79.00	92.20
400000	200	670	5.0		98.40	114.80
500000	220	750	8.0		121.20	141.40
600000	240	820	8.0		145.00	169.20
700000	260	870	8.0		168.00	196.00
800000	280	930	9.0		192.00	224.00
900000	300	990	9.0		215.00	250.10
1000000	320	1050	9.0		238.00	277.70

Lifting Sling

Endless Type Round Sling
