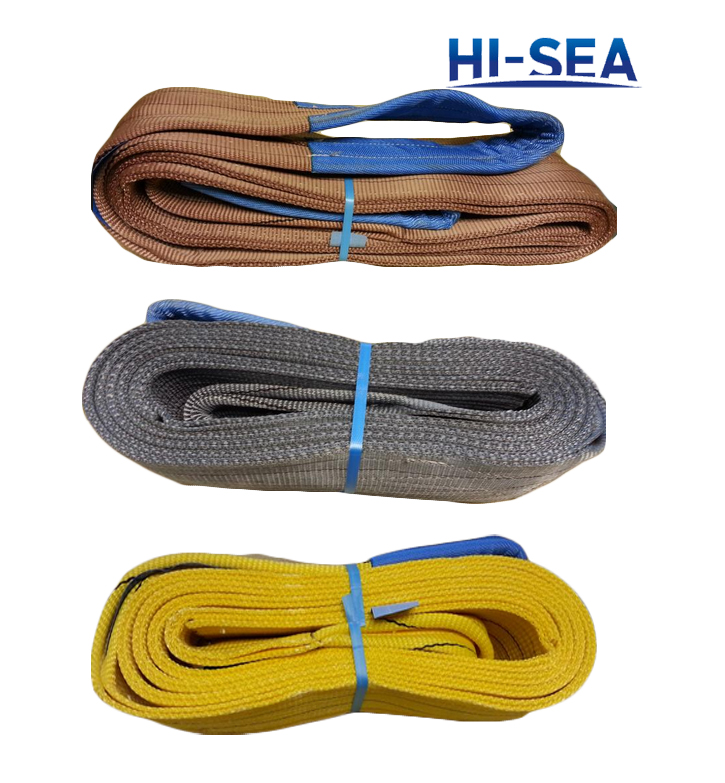

Fireproof Eye Type Webbing Sling

Fireproof Eye Type Webbing Sling:

This sling is produced by high-strength, heat resistant aramid fiber. It is characterized by light, soft, flame-retardant, heat resistant, excellent abrasion resistance, high strength and low elongation, high safety coefficient, long life, non-conductive, non-electric shock danger, having a good chemical corrosion resistance and so on. In addition, it can be applied to flame, sparks, high-temperature environment and the temperature range is from -40℃ to 180℃. What's more, its diameter is just half of the ordinary lifting sling. Please feel free to contact with us.

Details:

1. Model: Fireproof Eye Type Round Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements
Specification:

Working load limited

Approx thickness

Approx width

L

Weight(6:1)

Minimum length

Maximum length

kg

mm

mm

m

m

kg/m

1000

10

40

1.50

To be customized

0.30

2000

11

50

1.50

0.45

3000

12

60

1.50

0.60

4000

14

70

1.50

0.90

5000

18

75

1.50

1.03

6000

19

80

2.00

1.19

8000

20

90

2.00

1.54

10000

21

100

3.00

2.10

12000

22

110

3.00

2.38

15000

23

125

3.00

2.80

20000

24

150

3.00

3.90

Fireproof Eye Type Webbing Sling

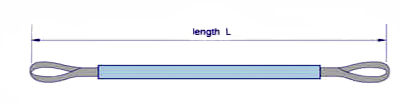

Structure:

Lifting Sling

Fireproof Eye Type Webbing Sling

Contact with us now

Working load limited	Approx thickness	Approx width	L		Weight(6:1)
Working load limited	Approx thickness	Approx width	Minimum length	Maximum length	Weight(6:1)
kg	mm	mm	m	m	kg/m
1000	10	40	1.50	To be customized	0.30
2000	11	50	1.50		0.45
3000	12	60	1.50		0.60
4000	14	70	1.50		0.90
5000	18	75	1.50		1.03
6000	19	80	2.00		1.19
8000	20	90	2.00		1.54
10000	21	100	3.00		2.10
12000	22	110	3.00		2.38
15000	23	125	3.00		2.80
20000	24	150	3.00		3.90

Lifting Sling

Fireproof Eye Type Webbing Sling
