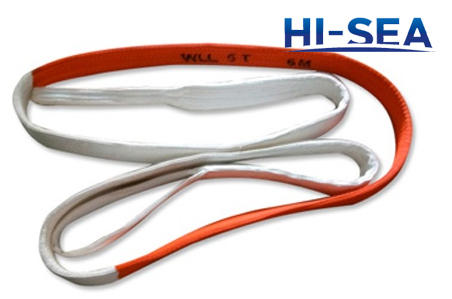

Protection Type Round Sling

Protection Type Round Sling:

Protection type round sling is made by the high quality material of synthetic fibre which is very compact design. This product is soft, so it will not hurt the lifted object's surface. In addition, the contact area with lifted objects is large. With this sling, you can easily achieve a stable lifting. When local damage to load bearing core of round sling as a result of serious overload arising from malfunction or long-time use occurs, its casing wil break first for warning to prevent accident from occuring. If you are interested in this product, welcome to contact with us.

Details:

1. Model: Protection Type Round Sling
2. Material: Polyester,
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements
Specification:

Working load limited

Approx thickness

Approx width

L

Weight(6:1)

Minimum length

Maximum length

kg

mm

mm

m

m

kg/m

1000

15

50

1.5

To be customized

0.33

2000

16

60

1.5

0.47

3000

18

70

1.5

0.68

4000

20

80

1.5

0.85

5000

25

90

1.5

1.06

6000

27

90

2.0

1.28

8000

28

100

2.0

1.59

10000

29

110

2.0

2.10

12000

30

125

2.0

2.60

15000

31

150

2.0

3.16

20000

32

180

2.5

4.89

25000

34

200

2.5

6.15

30000

68

220

2.5

9.51

40000

75

250

25.0

12.45

50000

86

270

2.5

14.40

60000

126

280

4.0

18.00

80000

138

300

4.0

23.10

100000

152

320

4.0

27.10

200000

230

460

5.0

65.90

300000

310

535

5.0

80.90

400000

380

680

5.0

100.20

500000

410

760

8.0

123.50

600000

460

830

8.0

147.50

700000

498

880

8.0

170.90

800000

520

940

10.0

194.80

900000

580

1000

10.0

218.10

1000000

610

1060

10.0

241.60

Protection Type Round Sling

High Quality Protection Type Round Sling

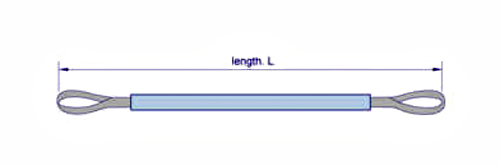

Structure:

Protection Type Round Sling

Lifting Sling

Protection Type Round Sling

Contact with us now

Working load limited	Approx thickness	Approx width	L		Weight(6:1)
Working load limited	Approx thickness	Approx width	Minimum length	Maximum length	Weight(6:1)
kg	mm	mm	m	m	kg/m
1000	15	50	1.5	To be customized	0.33
2000	16	60	1.5		0.47
3000	18	70	1.5		0.68
4000	20	80	1.5		0.85
5000	25	90	1.5		1.06
6000	27	90	2.0		1.28
8000	28	100	2.0		1.59
10000	29	110	2.0		2.10
12000	30	125	2.0		2.60
15000	31	150	2.0		3.16
20000	32	180	2.5		4.89
25000	34	200	2.5		6.15
30000	68	220	2.5		9.51
40000	75	250	25.0		12.45
50000	86	270	2.5		14.40
60000	126	280	4.0		18.00
80000	138	300	4.0		23.10
100000	152	320	4.0		27.10
200000	230	460	5.0		65.90
300000	310	535	5.0		80.90
400000	380	680	5.0		100.20
500000	410	760	8.0		123.50
600000	460	830	8.0		147.50
700000	498	880	8.0		170.90
800000	520	940	10.0		194.80
900000	580	1000	10.0		218.10
1000000	610	1060	10.0		241.60

Lifting Sling

Protection Type Round Sling
