Eye Type Round Sling

Eye Type Round Sling:

Eye and eye round sling is soft in texture and with multiple suspension points. Both ends of the sling are fitted with fixed lifting bushing. The sling body is thick and its surface is wear resistant. Our company has produced it for many years and we also co-operate with other excellent factories. All sizes are available and the price is very competitive. Welcome to contact with us.

Details:

1. Model: Eye Type Round Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements
Specification:

Working Load Limited

Approx thickness

Approx width

L

Weight(6:1)

Minimum length

Maximum length

kg

mm

mm

m

m

kg/m

1000

11

50

1.0

To be customized

0.29

2000

12

60

1.5

0.41

3000

14

70

1.5

0.63

4000

15

80

1.5

0.80

5000

23

90

1.5

0.96

6000

25

90

2.0

1.12

8000

26

100

3.0

1.45

10000

27

110

3.0

1.90

12000

28

125

3.0

2.36

15000

29

150

3.0

2.86

20000

31

180

3.0

4.50

25000

34

200

3.0

5.70

30000

36

220

4.0

7.90

40000

40

250

4.0

10.60

50000

46

300

4.0

12.50

Eye Type Round Sling

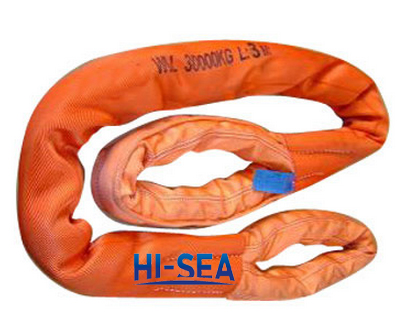

Orange Eye to Eye Round Sling

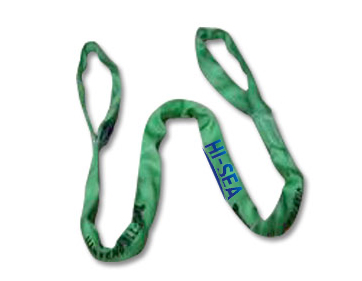

Green Eye Type Round Sling

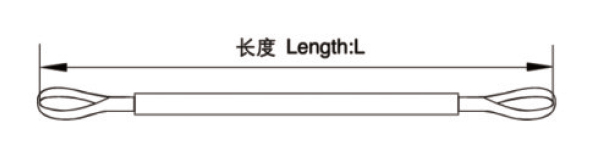

Structure:

Eye Type Round Sling

Lifting Sling

Eye Type Round Sling

Contact with us now

Working Load Limited	Approx thickness	Approx width	L		Weight(6:1)
Working Load Limited	Approx thickness	Approx width	Minimum length	Maximum length	Weight(6:1)
kg	mm	mm	m	m	kg/m
1000	11	50	1.0	To be customized	0.29
2000	12	60	1.5		0.41
3000	14	70	1.5		0.63
4000	15	80	1.5		0.80
5000	23	90	1.5		0.96
6000	25	90	2.0		1.12
8000	26	100	3.0		1.45
10000	27	110	3.0		1.90
12000	28	125	3.0		2.36
15000	29	150	3.0		2.86
20000	31	180	3.0		4.50
25000	34	200	3.0		5.70
30000	36	220	4.0		7.90
40000	40	250	4.0		10.60
50000	46	300	4.0		12.50

Lifting Sling

Eye Type Round Sling
