British Standard Welded Link Chain



British Standard Welded Link Chain

The British standard welded link chain is a sort of mild steel welded link chain manufactured to meet British Standard. There are three types of the chain: short link, medium link and long link. The short link chains with load ratings of 80 and 100 are suitable used for overhead lifting. The British standard link chain is suitable for all general purposes, such as engineering, industrial, agricultural and marine applications. The chain is in a variety of protective finishes and packages. Besides, we provide a wide range of material diameter, from 3.2 mm to 25.4 mm.

Besides the British standard welded link chain, we are able to provide American standard welded link chain, DIN standard welded link chain, Chinese standard welded link chain...

If you are interested in our chains, please contact us. We are capable of customizing products in line with your specific requirements.

Features of British Standard Welded Link Chain

• Type: short link, medium link and long link

• Standard: BS

• Finish: galvanized

• Package: drums, reels, bags, hanks...

• Application: suitable for all general purposes

Specifications of British Standard Welded Short Link Chain

Material Diameter

Internal Length

Outside Width

Test Load

Breaking Load

Weight per 200 Feet

kg

in

mm

mm

mm

kg

kg

B.F.

H.D.G

1/8

3.20

16

12

200

400

11.4

11.74

5/32

4.00

18.5

14.5

300

600

18.6

19.00

3/16

4.70

19

17

400

800

26.2

27.00

7/32

5.50

20

19

550

1100

36.8

38.00

1/4

6.35

22

21

750

1500

50.0

51.50

5/16

7.94

26.5

27.2

1200

2400

80.0

82.40

3/8

9.50

30

32

1700

3400

122.0

125.70

7/16

11.11

34

36

2300

4600

164.0

169.00

1/2

12.70

39

43

3000

6000

210.0

216.00

5/8

15.80

45

53

4700

9400

334.0

344.00

3/4

19.00

55

63

6800

13600

485.0

499.00

7/8

22.20

64

74

9250

18500

656.0

675.00

1

25.40

73

84

12150

24300

870.0

896.00

Specifications of British Standard Welded Medium Link Chain

Material Diameter

Internal Length

Outside Width

Test Load

Breaking Load

Weight per 200 Feet

kg

in

mm

mm

mm

kg

kg

B.F.

H.D.G

1/8

3.20

20

12

200

400

10.80

11.00

5/32

4.00

23

15

300

600

17.40

18.00

3/16

4.70

25

18

400

800

24.40

25.00

7/32

5.50

26

19

550

1100

34.00

35.00

1/4

6.35

26

23

750

1500

48.80

50.00

5/16

7.94

32

29

1200

2400

76.00

78.00

3/8

9.50

35

35

1700

3400

111.00

114.00

7/16

11.11

38

38

2300

4600

154.00

158.00

1/2

12.70

50

45.5

3000

6000

194.00

200.00

5/8

15.80

60

56.7

4700

9400

303.00

312.00

3/4

19.00

76

69

6800

13600

432.00

445.00

7/8

22.20

90

80

9250

18500

586.00

603.00

1

25.40

105

95

12150

24300

770.00

792.00

Specifications of British Standard Welded Long Link Chain

Material Diameter

Internal Length

Outside Width

Test Load

Breaking Load

Weight per 200 Feet

kg

in

mm

mm

mm

kg

kg

B.F.

H.D.G

1/8

3.20

23

12

200

400

10.40

10.70

5/32

4.00

27

15

300

600

16.60

17.50

3/16

4.70

31

17

400

800

22.40

23.30

7/32

5.50

32

19

550

1100

32.00

33.00

1/4

6.35

33

21

750

1500

43.50

44.80

5/16

7.94

48

31

1200

2400

68.00

70.00

3/8

9.50

60

37

1700

3400

96.00

99.00

7/16

11.11

71

41

2300

4600

126.00

129.00

1/2

12.70

85

48.5

3000

6000

167.00

172.00

5/8

15.80

114

61.5

4700

9400

256.00

264.00

3/4

19.00

125

75

6800

13600

381.00

392.00

7/8

22.20

140

88

9250

18500

527.00

543.00

1

25.40

155

100

12150

24300

696.00

716.00



Pictures of British Standard Welded Link Chain

British Standard Welded Link Chain

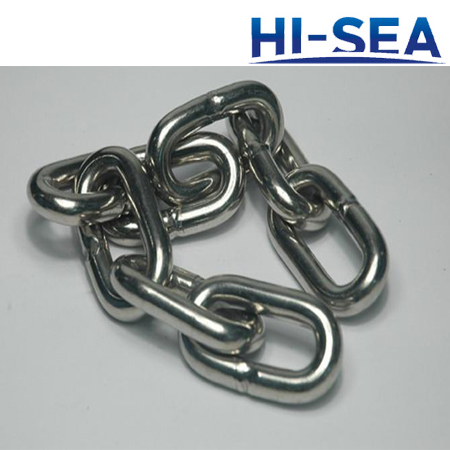

British Standard Welded Short Link Chain

British Standard Welded Link Chain

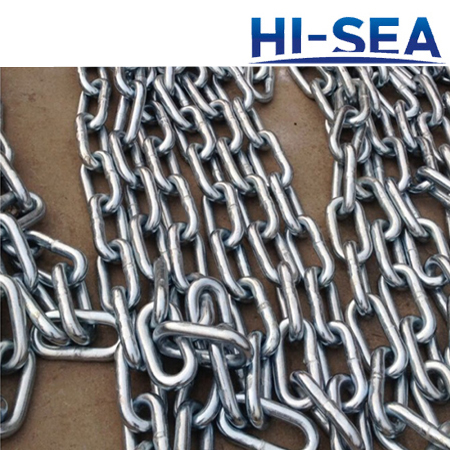

British Standard Welded Medium Link Chain

British Standard Welded Link Chain

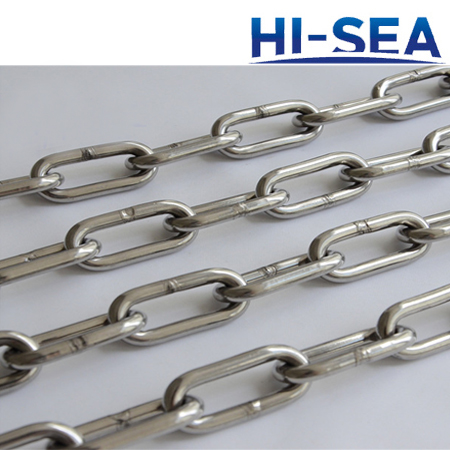

British Standard Welded Long Link Chain
