Grade L Chain
Grade L chain is a kind of Australian standard chain, can be made of carbon steel or stainless steel. This chain can not be used for lifting purposes.

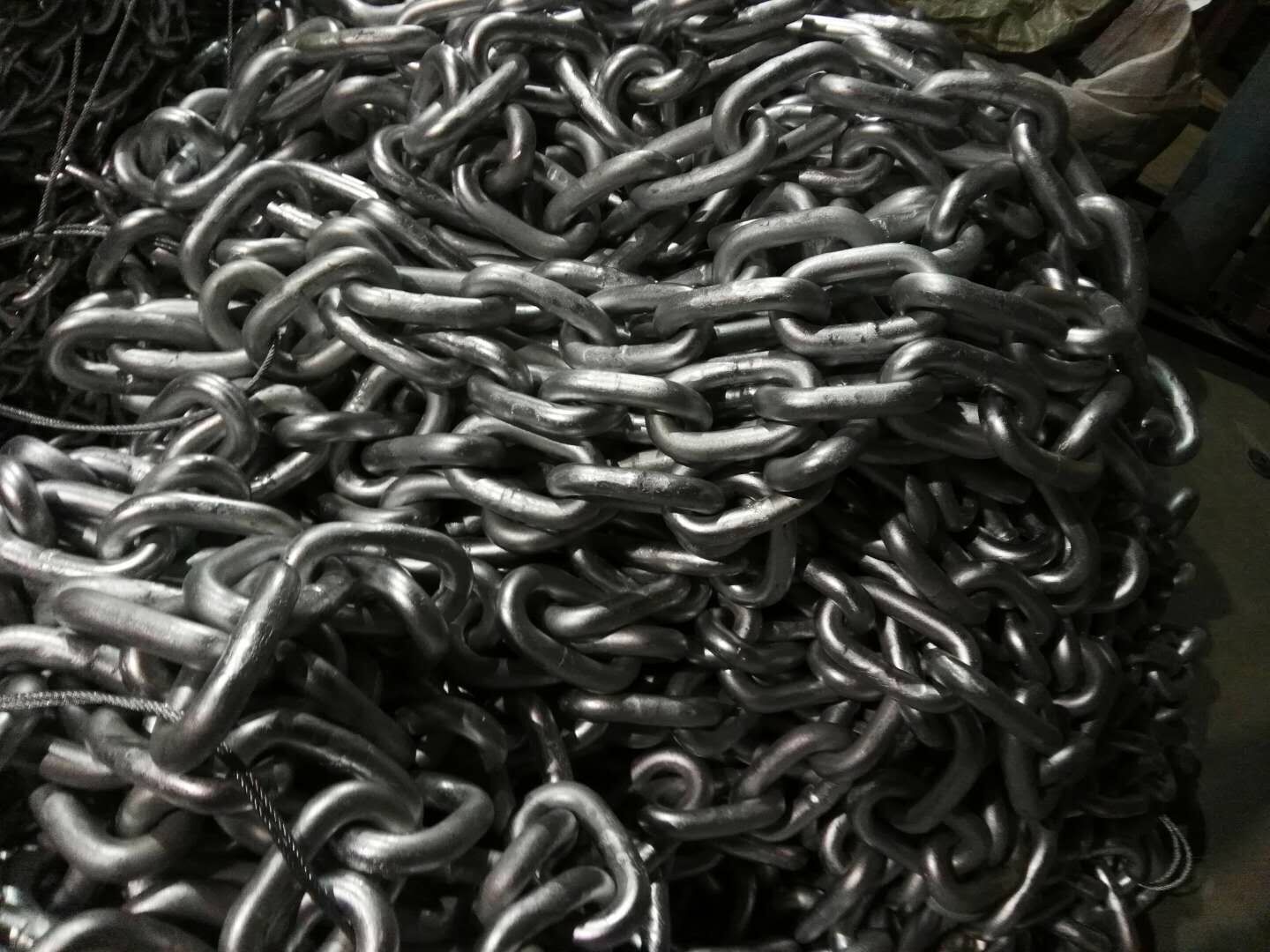

Surface Treatment: self-color,hot dip galvanized, electro-galvanized, black-painted.
Specifications
|

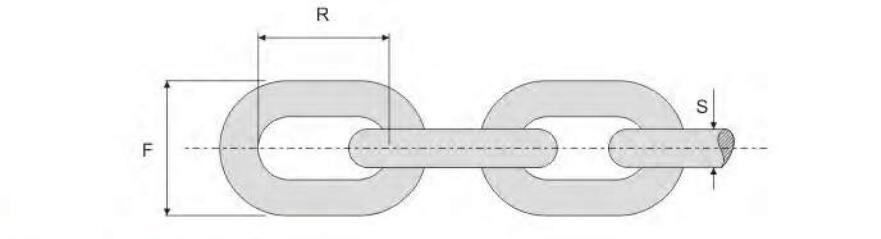

Chain Size mm |
WLL ton |
S mm |
R mm |
F mm |
Links Per M |
Length Per 100Kg |
|
|
B.F. m |
H.D.G m |
||||||
|
5.0 |
0.25 |
5.0 |
14.6 |
17.2 |
68.3 |
174.0 |
167.0 |
|
6.0 |
0.40 |
6.3 |
18.8 |
21.6 |
53.2 |
116.0 |
110.0 |
|
8.0 |
0.64 |
8.0 |
23.8 |
27.0 |
42.0 |
71.4 |
69.9 |
|
10.0 |
1.00 |
10.0 |
29.8 |
34.3 |
33.6 |
44.8 |
43.9 |
|
13.0 |
1.70 |
13.0 |
38.8 |
44.6 |
25.8 |
28.9 |
26.3 |
|
16.0 |
2.58 |
16.0 |
47.8 |
54.8 |
20.9 |
17.8 |
17.5 |
|
20.0 |
4.03 |
20.0 |
59.2 |
68.5 |
16.9 |
11.3 |
11.1 |
|
22.0 |
5.06 |
22.0 |
64.9 |
77.0 |
15.4 |
9.5 |
9.2 |
|
24.0 |
5.61 |
24.0 |
71.0 |
82.2 |
14.1 |
7.8 |
7.6 |
