Chain DIN 5685 is a sort of welded, round steel chain with long or short-length links that are neither calibrated nor tested. Chain din 5685 are made to German Standard. The material of chain is in line with DIN 17151. The chain are not suitable for lifting applications, nor being subjected to static loads. There are two types of the chain din 5685, A (short) and C (long). We are able to offer relevant accessories of the chain.

Finishes of chain din 5685 are self-colored, black painted, bright zinc painted, and hot dip galvanized. Chains can be supplied in hanks, boxes, bags and on reels.

Chain DIN 5685

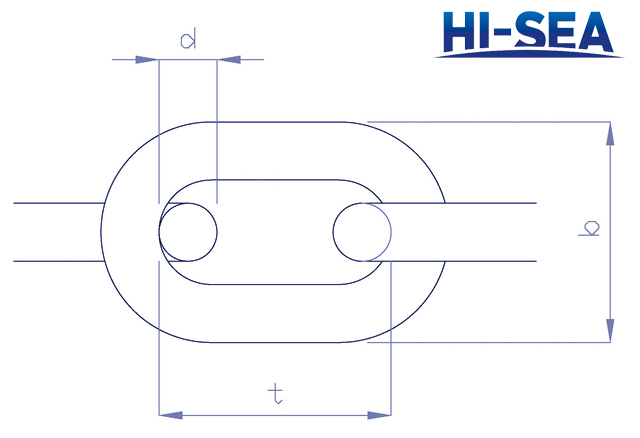

Drawing of Chain DIN 5685 Form A Short Link

Specifications of Chain DIN 5685 Form A Short Link

Size d mm	Inside Length t mm	Outside Length b mm	Weight per 100m kg	Test Load N	Breaking Load N
2.0	12.0	8.0	7.0	500	1250
2.5	14.0	10.0	11.0	750	2000
3.0	16.0	12.0	16.5	1120	2800
3.5	18.0	14.0	22.5	1500	3850
4.0	19.0	16.0	30.0	2000	5000
4.5	20.0	18.0	39.5	2500	6300
5.0	21.0	20.0	50.0	3150	7750
5.5	23.0	22.0	60.5	3800	9500
6.0	24.0	24.0	73.0	4500	11500
6.5	26.0	26.0	86.0	5400	13500
7.0	28.0	28.0	100.0	6000	15000
8.0	32.0	32.0	130.0	8000	20000
8.5	34.0	34.0	149.0	9000	22500
9.0	36.0	36.0	165.0	10000	25000
10.0	40.0	40.0	205.0	12500	31000
11.0	44.0	44.0	250.0	15000	38000
12.0	48.0	48.0	290.0	18000	45000
13.0	52.0	52.0	345.0	21200	53000

Chain DIN 5685

Drawing of Chain DIN 5685 Form C Long Link

Specifications of Chain DIN 5685 Form C Long Link

Size d mm	Inside Length t mm	Outside Width b mm	Weight per 100m kg	Test Load N	Breaking Load N
2.0	22.0	8.0	6.0	500	1250
2.5	24.0	10.0	10.0	750	2000
3.0	26.0	12.0	15.0	1120	2800
3.5	28.0	14.0	20.0	1500	3850
4.0	32.0	16.0	27.0	2000	5000
4.5	34.0	18.0	35.0	2500	6300
5.0	35.0	20.0	43.0	3150	7750
5.5	38.5	22.0	52.0	3800	9500
6.0	42.0	24.0	63.0	4500	11500
6.5	45.5	26.0	74.0	5400	13500
7.0	49.0	28.0	86.0	6000	15000
8.0	52.0	32.0	110.0	8000	20000
8.5	56.0	34.0	125.0	9000	22500
9.0	59.0	36.0	141.0	10000	25000
10.0	65.0	40.0	175.0	12500	31000
11.0	72.0	44.0	211.0	15000	38000
12.0	78.0	48.0	255.0	18000	45000
13.0	82.0	52.0	295.0	21200	53000

• It should be noted that the maximum load figures quoted are for guidance only. These chains are not tested.

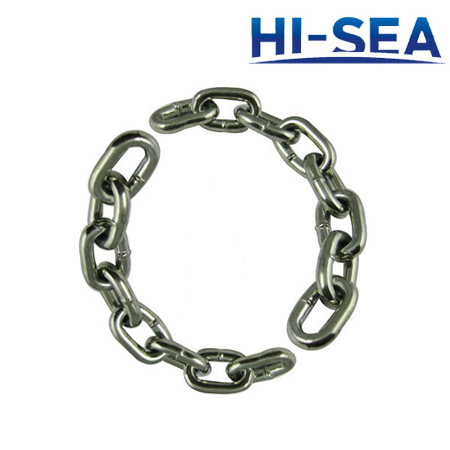

Chain DIN 5685 Form A Short Link
