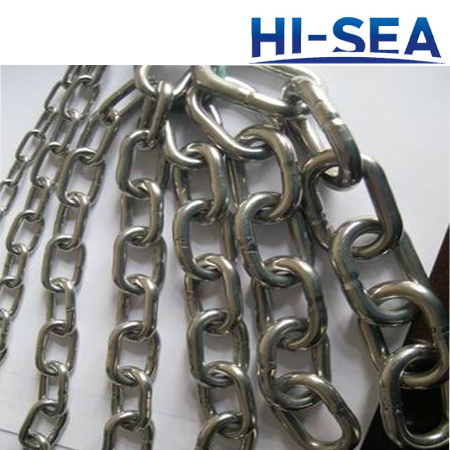

Japanese Standard Stainless Steel Chain

Japanese Standard Stainless Steel Chain

Our Japanese standard stainless steel chain meets requirements of Japanese Industrial Standards. The available steel grades are SUS304, SUS304L, SUS316, SUS316L, etc. We offer you chains with diameter range from 1.5 mm to 28 mm. The chain is suitable for general purposes.

Besides the Japanese standard stainless steel chain, other chains, such as American standard stainless steel chain, DIN standard steel chain, GB standard steel chain, EN standard steel chain, BS standard steel chain are all available. Please let us know what you are looking for, we’ll glad to help. If you have any specific requirements, we can customize chains for you.

Specifications of Japanese Standard Stainless Steel Chain

Chain Diameter mm	Inside Length mm	Inside Width mm	Weight kg/m
1.5	9	2.7	0.041
2	12	3.5	0.07
3	19	5	0.16
4	26	6	0.27
4	20	6	0.29
5	27	7	0.44
5	20	7	0.49
5.5	30	8	0.54
5.5	24	10	0.6
6	31	9	0.65
6	24	9	0.72
7	37	10	0.88
7	28	10	0.96
8	38	11	1.18
8	32	12	1.27
9	39	13	1.55
9	36	14	1.61
10	42	15	1.95
12	54	20	2.77
12	48	19	2.88
13	52	20.8	3.35
14	56	22.4	3.89
15	60	24	4.47
16	64	25.6	5.08
17	68	27.2	5.72
18	72	29.7	6.44
19	76	31.3	7.18
20	80	33	7.95
21	84	34.6	8.72
22	88	36.3	9.59
23	92	37.9	10.49
24	96	40.8	11.44
25	100	42.5	12.41
26	104	44.2	13.44
27	108	45.9	14.47
28	112	47.6	15.56
