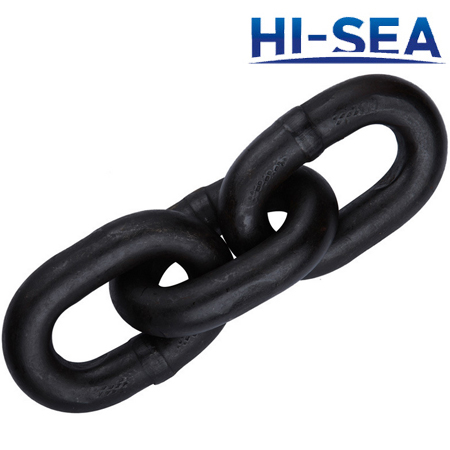

European Standard Short Link Chain

European Standard Short Link Chain

The European standard short link chain is a kind of welded short link chain used for lifting purposes. The chain meets European Standard EN 818. The chain is heat treated and complying with the general conditions of acceptance. We offer the range of nominal sizes of chain is from 4 mm to 45 mm. Besides the standard specifications, non-standard specifications also are available. The chain provided are produced by Chinese top factories, quality-guaranteed.

Excepting for the chain complying with EN 818-2, ASTM grade 80 chain, 100 chain available, too. Please contact us for more information about welded link chains.

Features of European Standard Short Link Chain (EN 818)

• Available grades: grade 2, 3, 5, 8

• Finishes: hot galvanized, paint, powder coating or as per customer’s request

• To meet the specifications of EN 818

• Available in gunny bag, drums, pails

• Application: for use in chain slings and for general lifting purposes

Specifications of European Standard Short Link Chain (EN 818-2)

Dimensions in Millimeters
Nominal Size d_n	Weld Diameter d_s max	Pitch			Internal Width away from Weld w₁ min	External Width over the Weld w₂ max
Nominal Size d_n	Weld Diameter d_s max	P_n	P max	P min	Internal Width away from Weld w₁ min	External Width over the Weld w₂ max
4	4.4	12	12.4	11.6	5.2	14.8
5	5.5	15	15.5	14.6	6.5	18.5
6	6.6	18	18.5	17.5	7.8	22.2
7	7.7	21	21.6	20.4	9.1	25.9
8	8.8	24	24.7	23.3	10.4	29.6
10	11	30	30.9	29.1	13	37
13	14.3	39	40.2	37.8	16.9	48.1
16	17.6	48	49.4	46.6	20.8	59.2
18	19.8	54	55.6	52.4	23.4	66.6
19	20.9	57	58.7	55.3	24.7	70.3
20	22	60	61.8	58.2	26	74
22	24.2	66	68	64	28.6	81.4
23	25.3	69	71.1	66.9	29.9	85.1
25	27.5	75	77.3	72.8	32.5	92.5
26	28.6	78	80.3	75.7	33.8	96.2
28	30.8	84	86.5	81.5	36.4	104
32	35.2	96	98.9	93.1	41.6	118
36	39.6	108	111	105	46.8	133
40	44	120	124	116	52	148
45	49.5	135	139	131	58.5	167
Note	P_n-- nominal pitch P_max -- maximum pitch of chain P_min-- minimum pitch of chain
