Cast Iron Angle SDNR Valve

Cast Iron Angle SDNR Valve


1. Angle SDNR Valve is Angle Screw Down Non-Return Valve

2. Application: Shipbuilding

3. Body Material: Cast Iron

4. Disc Material: Stainless Steel

5. Stem Material: Stainless Steel

6. Seat Material: Stainless Steel

7. Nominal Pressure: PN10/PN16

8. Specification:

Size

L1

D

C

N0. X h

15

90

95

65

4 x 14

20

95

105

75

4 x 14

25

100

115

85

4 x 14

32

105

140

100

4 x 18

40

115

150

110

4 x 18

50

125

165

125

4 x 18

65

145

185

145

4 x 18

80

155

200

160

8 x 18

100

175

220

180

8 x 18

125

200

250

210

8 x 18

150

225

285

240

8 x 22

175

250

315

270

8 x 22

200

275

340

295

12 x 22

250

325

405

355

12 x 25

300

375

460

410

12 x 25

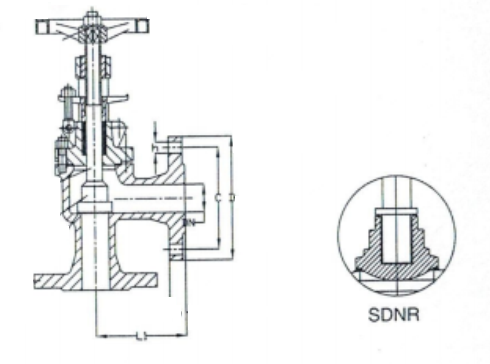

9. Cast Iron Angle SDNR Valve Drawing:

Cast Iron Angle SDNR Valve

10. Available Certificate:

Cast Iron Angle SDNR Valve
