Lug Type Butterfly Valve
1. Standard: DIN
2. Connections: Lug Type
3. Operation: Hand Lever, Worm Gear, Electric Drive, Pneumatic Drive or Hydraulic Drive.
4. Nominal Pressure: DIN PN10/16
5. Temperature Range: NBR -10℃~+80℃
6. Name of Parts:
|
Body |
Cast Iron or Ductile Iron |
|
Disc |
Ductile Iron |
|
Stem |
Stainless Steel |
|
Liner |
NBR |

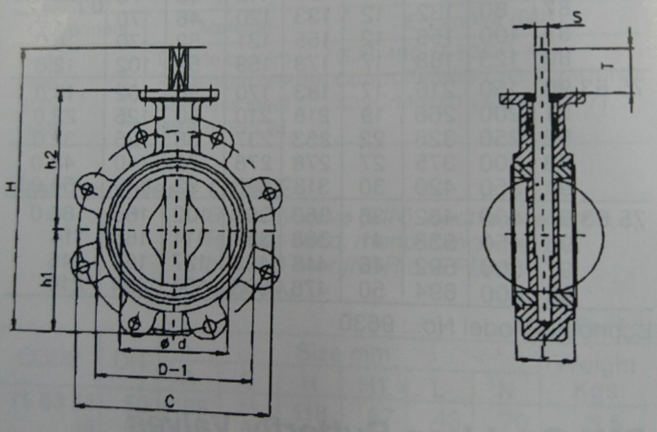

7. Specification for PN6:
|
IMPA Code |
DN |
D-1 |
d |
L |
H |
S |
T |
C |
Bolt |
|
754416 |
50 |
102 |
52 |
43 |
240 |
10 |
- |
110 |
4x14 |
|
754417 |
65 |
115 |
65 |
46 |
247 |
10 |
- |
130 |
4x14 |
|
754418 |
80 |
128 |
80 |
46 |
266 |
10 |
- |
150 |
4x18 |
|
754419 |
100 |
153 |
100 |
52 |
298 |
10 |
- |
170 |
4x18 |
|
754420 |
125 |
183 |
125 |
56 |
331 |
12 |
- |
200 |
8x18 |
|
754421 |
150 |
210 |
150 |
56 |
363 |
15 |
- |
225 |
8x18 |
|
754422 |
200 |
259 |
198 |
60 |
412 |
15 |
- |
280 |
8x18 |
|
754423 |
250 |
328 |
248 |
68 |
506 |
18 |
- |
335 |
12x18 |
|
754424 |
300 |
374 |
298 |
78 |
538 |
20 |
- |
395 |
12x22 |
|
754425 |
350 |
416 |
327 |
78 |
675 |
20 |
45 |
445 |
12x22 |
|
754426 |
400 |
475 |
387 |
102 |
817 |
- |
60 |
495 |
16x22 |
|
754427 |
450 |
535 |
438 |
114 |
877 |
- |
60 |
550 |
16x22 |
|
754428 |
500 |
586 |
477 |
127 |
1008 |
- |
60 |
600 |
20x22 |
|
754429 |
600 |
695 |
560 |
154 |
1180 |
- |
60 |
705 |
20x26 |
8. Specification for PN16:
|
IMPA Code |
DN |
D-1 |
d |
L |
H |
S |
T |
C |
Bolt |
|
754431 |
50 |
102 |
52 |
43 |
240 |
10 |
- |
125 |
4x18 |
|
754432 |
65 |
115 |
65 |
46 |
247 |
10 |
- |
145 |
4x18 |
|
754433 |
80 |
128 |
80 |
46 |
266 |
10 |
- |
160 |
8x18 |
|
754434 |
100 |
153 |
100 |
52 |
298 |
10 |
- |
180 |
8x18 |
|
754435 |
125 |
183 |
125 |
56 |
331 |
12 |
- |
210 |
8x18 |
|
754436 |
150 |
210 |
150 |
56 |
363 |
15 |
- |
240 |
8x22 |
|
754437 |
200 |
259 |
198 |
60 |
412 |
15 |
- |
295 |
8x22 |
|
754438 |
250 |
328 |
248 |
68 |
506 |
18 |
- |
350 |
12x22 |
|
754439 |
300 |
374 |
298 |
78 |
538 |
20 |
- |
400 |
12x22 |
|
754440 |
350 |
416 |
327 |
78 |
675 |
20 |
45 |
460 |
12x22 |
|
754441 |
400 |
475 |
387 |
102 |
817 |
- |
60 |
515 |
16x26 |
|
754442 |
450 |
535 |
438 |
114 |
877 |
- |
60 |
565 |
20x26 |
|
754443 |
500 |
586 |
477 |
127 |
1008 |
- |
60 |
620 |
20x26 |
|
754444 |
600 |
695 |
560 |
154 |
1180 |
- |
60 |
725 |
20x30 |
Available Certificate:
