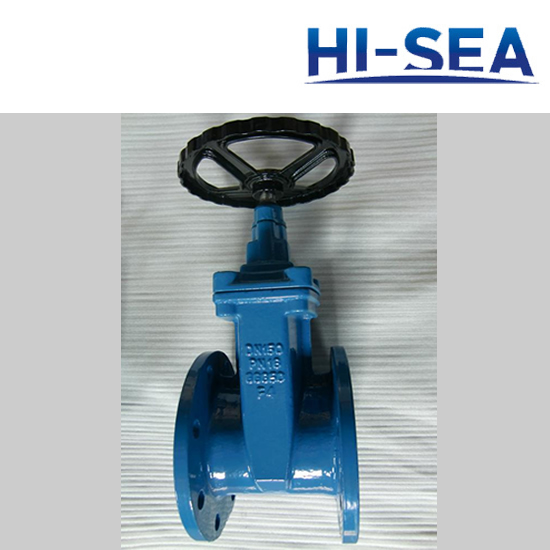

Marine DIN Cast Iron Gate Valve
1. Standard: DIN3204 F4/F5
2. Valve Body: Cast Iron HT250
3. Valve Disc: Bronze ZCuSn5Pb5Zn5 OR Stainless Steel 2Cr13
4. Valve Stem: Brass HPb59-1 OR Stainless Steel 2Cr13
5. Gasket: NON-Asbestos
6. Marine DIN Cast Iron Gate Valve Specification:
Unit: mm
|
Nominal Diameter |
L (F4) |
D |
C |
NO. |
h |
t |
H |
D2 |
m |
|
PN16 DN50 |
150 |
165 |
125 |
4 |
18 |
20 |
340 |
180 |
60 |
|
PN16 DN65 |
170 |
185 |
145 |
4 |
18 |
20 |
372 |
180 |
75 |
|
PN16 DN80 |
180 |
200 |
160 |
8 |
18 |
22 |
430 |
200 |
92 |
|
PN16 DN100 |
190 |
220 |
180 |
8 |
18 |
24 |
460 |
200 |
112 |
|
PN16 DN125 |
200 |
250 |
210 |
8 |
18 |
26 |
528 |
224 |
138 |
|
PN16 DN150 |
210 |
285 |
240 |
8 |
22 |
26 |
566 |
224 |
165 |
|
PN16 DN200 |
230 |
340 |
295 |
8 |
22 |
26 |
685 |
250 |
215 |
